Tunnel Banquet¶
For tunnel banquets, we use manual description. Dedicated templates have been created for this purpose.

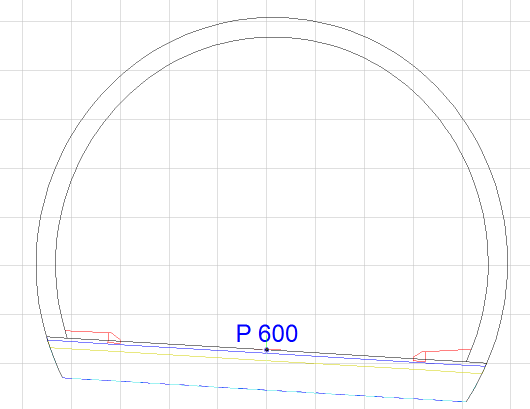

Example of tunnel banquet
Procedure
- Select the contour in the list
- Select Get layer from template... in the right-click menu
- Select the template, TunnelBankett.sfi, in the standard template dialog and click OK
- Select package (banquet type) if the template has multiple options
- Mark the layers you want to import and click OK
A banquet consists of 2 layers for the left side and two layers for the right side:
- 34: Left curb
- 35: Right curb
- 36: Left banquet
- 37: Right banquet
Note
We can create our own templates with the option Save as template... in the SFI model's properties tab.
