Superstructure

Building superstructure layers can be an automated process in Gemini Terrain.

The method requires that you have defined parameters for superstructure under Edit cut/fill parameters.

Procedure

1. Construct the excavation surface
2. Enter parameters for superstructure
3. Build the excavation with the Auto-build superstructure layers option activated

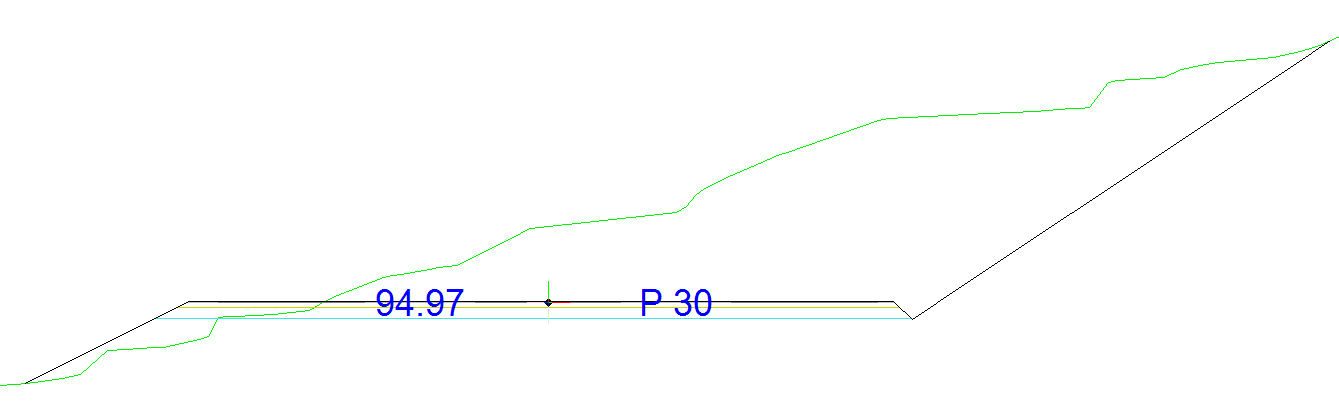

Superstructure in building excavation
