Mass Calculation

The program uses the integral method to calculate areas and masses in building excavations. This is described in detail in the section Integral Method.

Calculating Masses

When the excavation is fully defined, you can find the functions to calculate masses and create reports on the context menu.

Procedure

1. Select the excavation
2. Right-click to open the context menu
3. Select the icons for Calculate masses and Create report

Predefined Mass Types

The program contains predefined mass types for NS3420.

The mass types are described in more detail below. It must be emphasized that these mass types are a starting point and will not necessarily cover all different combinations you may encounter. It may therefore be necessary to edit standard mass types and/or create new user-defined mass types as needed.

Note

The principles for defining mass types are the same whether you use the integral method or the cross-section method. Mass types are described in more detail in the section Cross-Section Method.

Code	Description	Unit
F11	Vegetation clearing	Horizontal area
	Soil cutting	Volume
F12	Topsoil removal	Horizontal area
G13	Blasting	Volume
G12	Slab blasting	Slab area
	Deep blasting	Volume
F41	Filling	Volume
F52	Grading	Horizontal area
	Fill slopes	Horizontal area
F56	Backfill against wall	Volume
F14.12	Cleaning of rock surface	Horizontal area
G14.11	Operational cleaning	Horizontal area
	Mass replacement	Volume
	Backfill at mass replacement	Volume
	Fill at mass replacement	Volume

Sketches Illustrating Some Mass Types

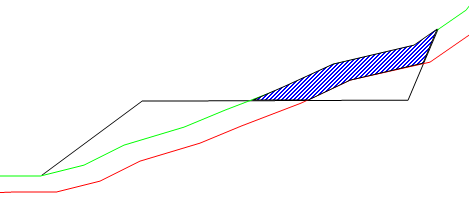

Soil cutting

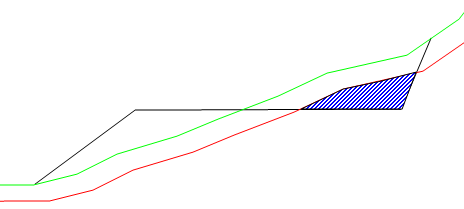

Blasting (rock cutting)

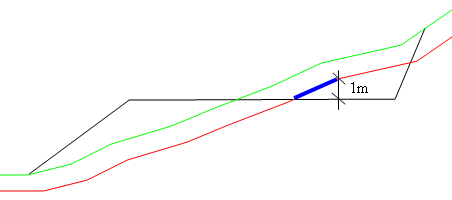

Slab blasting

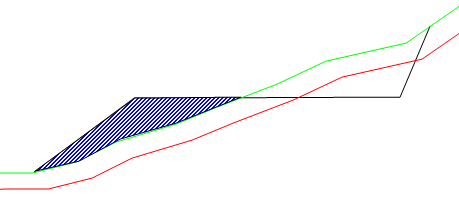

Filling

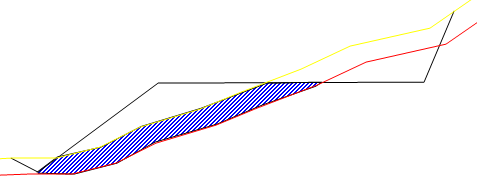

Mass replacement

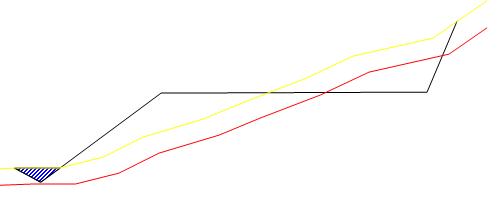

Backfill at mass replacement

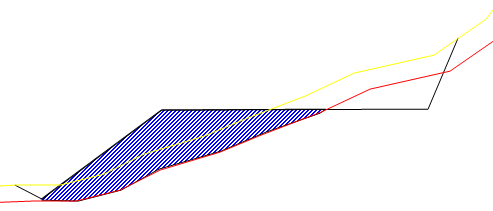

Fill at mass replacement
