Water and sewer design: Drawing production¶

Site plan and longitudinal profile¶

How you create presentation drawings for plan and profile, as well as manual sheets, is described in more detail in the section Presentation drawings.

Detail drawings¶

The program has no customized functionality for manhole sketches. But you can produce simple detail drawings with the functions found in the toolset for 3D primitives.

Example of manhole sketch

3D primitives are described in more detail under the chapter about DDScad.

Normal profiles¶

It can be appropriate to start by constructing a normal profile for the ditch before you start with construction of the water and sewer network. Then you have full control over where the pipes should be located in relation to each other, and you know how the ditch should be designed with regard to mass calculation.

When you are going to draw normal profiles of the ditch, you can use the following method:

Procedure

Create a new drawing in project or User folder
Activate toolset for primitives
Draw the normal profile
Dimension the normal profile
Create presentation drawing and insert the normal profile

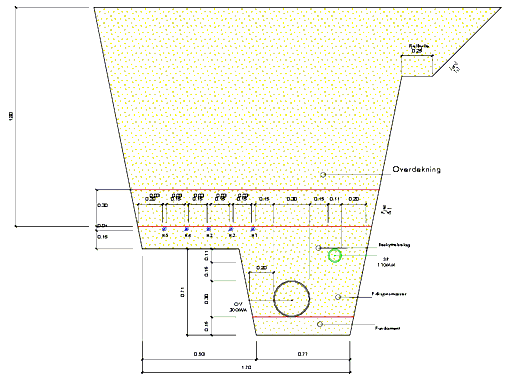

Example of drawn normal profile

You can insert your own drawings on presentation drawings with Insert file... from the Insert menu.

Assembly of detail drawings¶

You can assemble different detail drawings on sheets (presentation drawings). When you are going to produce printouts, you put together all drawings in one or more sheets. To achieve good structure in the project, you use multiple drawings.

Procedure

Create new presentation drawing
Select sheet size for the printout
Retrieve detail drawings and place the sections within the sheet frame
Insert title field

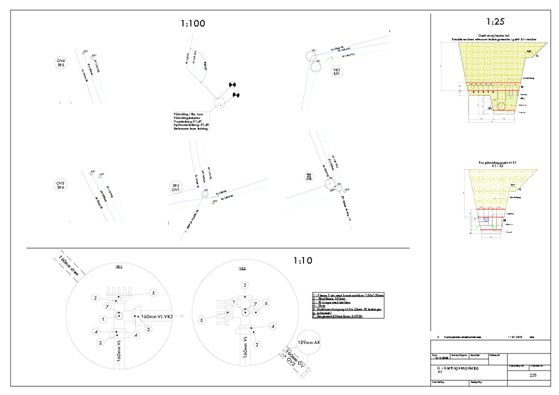

Presentation drawing with assembly of different detail drawings
