Models

In a drawing in Gemini Terrain, you can insert internal and external models.

Internal models are models that have been designed in Gemini Terrain.

Inserted models are displayed in the Command List and Models tabs in the vertical list field.

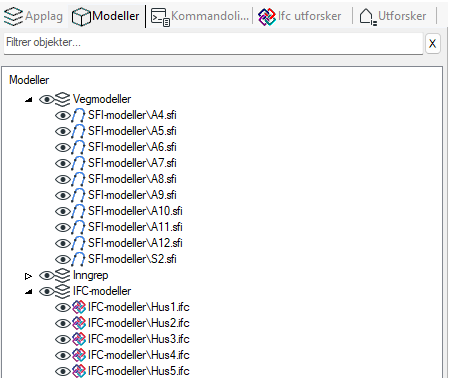

Vertical list field for models

Inserted models in the Models tab in the vertical list field

Inserting Models

You insert models into the drawing with:

  • Add...
  • Add Dynamic... (external models only)

All available options for models can be found in the context menu in the model list.

Command List and Order

The command list is a sequential list showing the order in which models were inserted into the drawing. The vertical list field for models is populated from the command list.

In the vertical list field for models, you can change the order using "drag and drop," in the same way as in the application layer list. The command list will be updated accordingly.

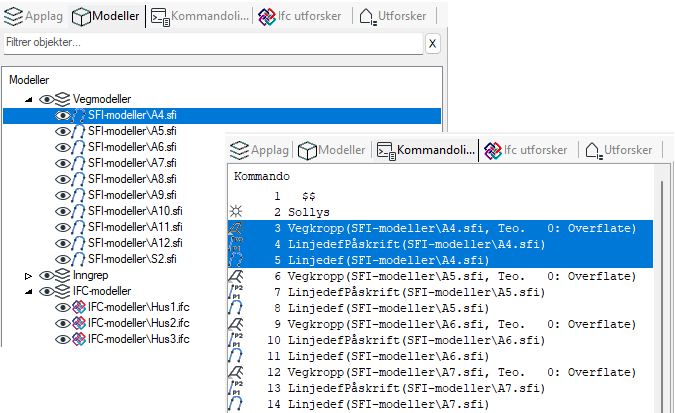

Command list with changed order

Example where A4.sfi is moved to the top of the command list
