Documentation of mass calculation with the integral method

Documentation in Excel

We can send the results from the mass calculation to Excel. The option Create report... can be found in the context menu. The report provides fixed quantities for each mass type.

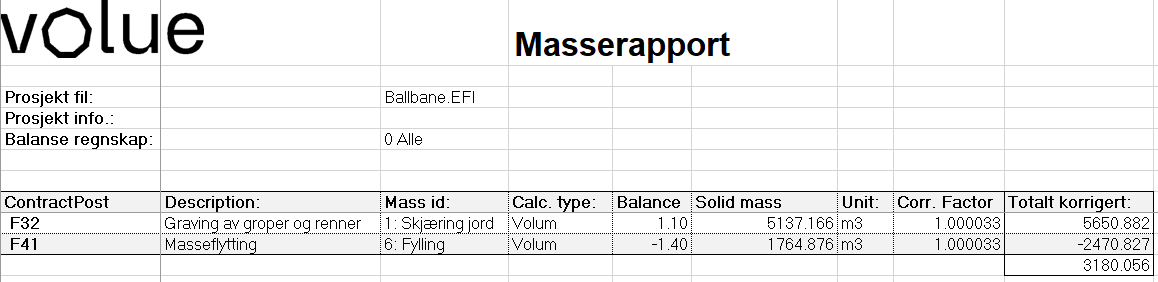

Example of a mass report in Excel with overview of volumes for different mass types.

Supplementary documentation

It is often useful to supplement this report with cross-sections showing the layers in the calculation. You can simultaneously run a mass calculation with the cross-section method as an independent rough check of the mass calculation.

Visualization in plan and 3D

We can also display the masses in plan and 3D and compile it on a sheet.

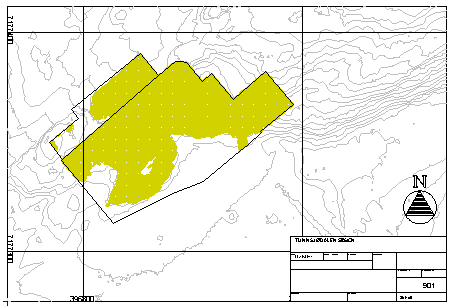

Example of blasting masses shown in a presentation drawing.

Info

Presentation drawings are described in more detail in a separate section.
