Import IREDES Drill Logs

We can import IREDES drill logs to application layers. All boreholes with properties are included. Each borehole becomes a line with start and end points.

Example of an import with the HOLETYPE property

When we have properties connected to the boreholes, we can set the presentations in plan and 3D view as desired.

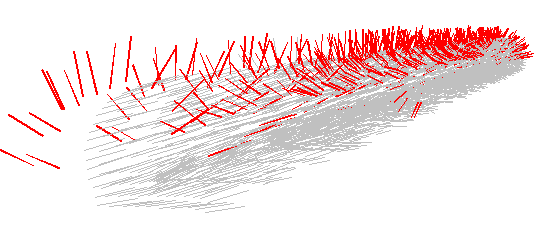

Example where the HOLETYPE property has presentation setup Pen: 3 (red) and Special: Tube

Procedure

1. Create application layer and check that it is active
2. Select Import IREDES drill logs to application layer from the menu Insert - Import...
3. Browse to the folder where the drill logs are located
4. Mark the relevant logs and click Open
