Presentation Drawings

The program contains standard U-drawings for roads, as well as some sheets that are especially useful for monitoring and documenting masses.

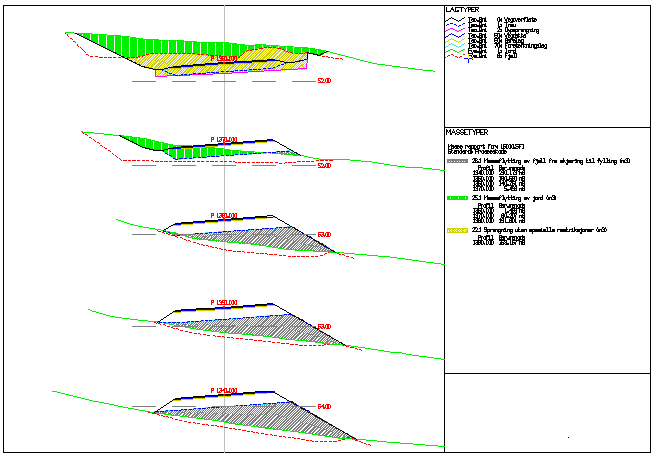

Standard U-drawings for roads in Gemini Terrain

Standard U-drawings available in Gemini Terrain

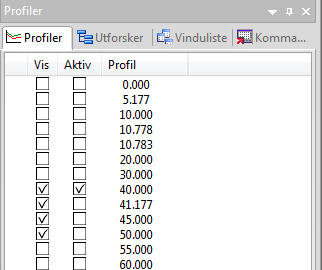

In the cross section tab, we can see which profiles are displayed in the sheet. By clicking in the active column, we can change the starting profile in the sheet.

Navigation in cross sections through the tab

Cross section tab with navigation options

Printing All Cross Sections

Procedure

  1. Double-click on the CrossSection command in the Command File tab
  2. Choose whether you want to print all profiles or a specific profile interval
  3. Confirm your selections to generate the printout

Displaying Layers and Mass Types

Procedure

  1. Select the Drawing options for longitudinal and cross sections icon on the toolbar
  2. In the dialog box that opens, find the options to toggle layers and mass types on/off
  3. Make your selections and confirm to update the display

Info

Presentation drawings are described in more detail in a separate section.
