Model List

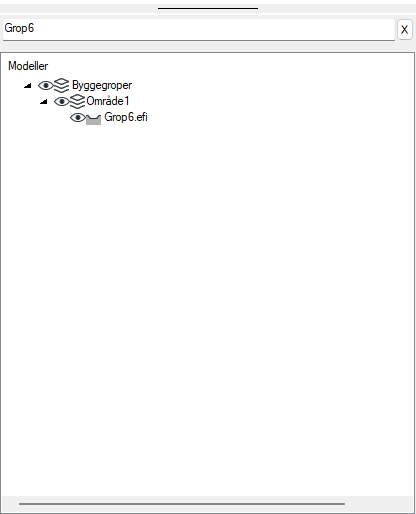

Filter in model list

A new field for filtering models has now been added.

Click the X button to reset the filter.

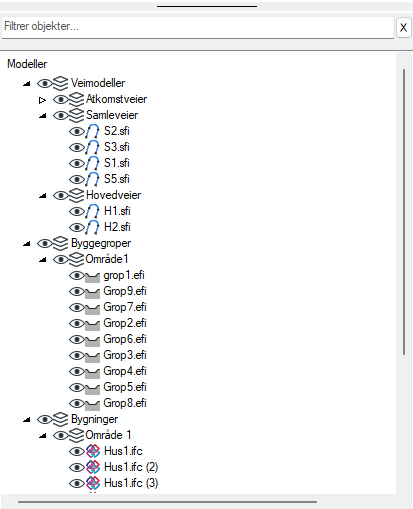

Sorting in model list

There is now support for sorting models at all group levels.

Mark the models at a group level and select Sort on the context menu.

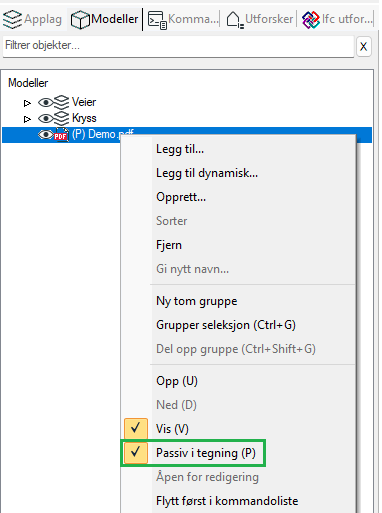

Passive as new option for external models

You can now choose to set external models (IFC, DWG and PDF) as passive in the model list.

This means that you can only snap to them, but not mark elements in the model.

New function: Duplicate

The Duplicate function has been added to right-click in the model list to simplify copying of files. Duplicate creates a copy of the selected model and places it at the top of the group/model list. The copy is automatically named and saved in the project's root folder.

New function: Save georeferenced IFC file

After you have georeferenced an IFC file in Gemini, you can now save a new IFC file that includes the georeferencing information.

The new IFC file is identical to the original, except that the georeferencing information has been added.
