Gemini SiteSurvey

Selection of pressure unit in instrument dialog

In Gemini, the program has so far automatically selected pressure unit by checking against value intervals. This proves to work poorly in, for example, underwater tunnels where the pressure is very low.

We have therefore introduced pressure unit, Auto, mmHg and hPa, as a choice on the instrument.

Existing instruments will get unit Auto, which means that the unit is predicted by value as before.

Excel support in the list for stations (leveling)

New options for Copy observations to Excel and Paste observations from Excel in a station for leveling.

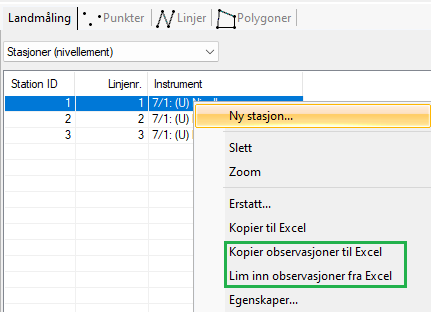

The options can be found on the context menu for a station.

The ability to copy observations to Excel can be very useful, as you get a good overview and access to Excel's functions. In Excel, we can in other words make edits and various calculations.

When we paste observations from Excel, there are a couple of things we want to mention:

1. All data in the station is replaced with the data from Excel
2. If we have added a new point in the line that does not exist in the point list, it will be created on the stretch between the point in front and the point behind.
