VIPS surfaces¶
The surfaces are divided into main groups, and each group can contain several sub-surfaces. The surface number consists of a number for the main group and a number, separated by a period, for the sub-surface.
| Main group no. | Main group name | Number of sub-surfaces |
|---|---|---|
| 0 | Median | 99 |
| 1 | Lane | 99 |
| 2 | Shoulder | 99 |
| 3 | Additional surfaces | 99 |
| 4 | Ditch | 99 |
| 5 | Rock cut | 99 |
| 6 | Earth cut | 99 |
| 7 | Fill | 99 |
| 8 | Grading | 99 |
| 9 | Other surfaces | 99 |
Surfaces on the left side of the centerline have a negative sign. Surfaces are assembled in ascending order by surface number, both for main groups and sub-surfaces.

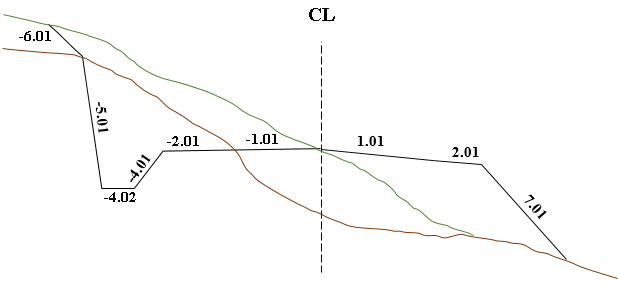

Example of a road in earth and rock profile
Additional surfaces can be used to describe elements beside the road that are closely related to it, such as noise barriers, sidewalks, ramps, and pedestrian and bicycle paths.

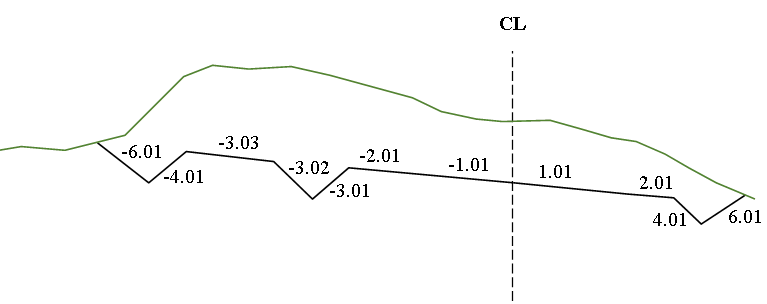

Example of a road with pedestrian and bicycle path
