LandXML Breaklines and Triangle Net

Use this dialog to export breaklines and triangle net to LandXML.

Export

You can export breaklines and triangle net to LandXML. The triangle net is exported as the road body is constructed and shown in the 3D model.

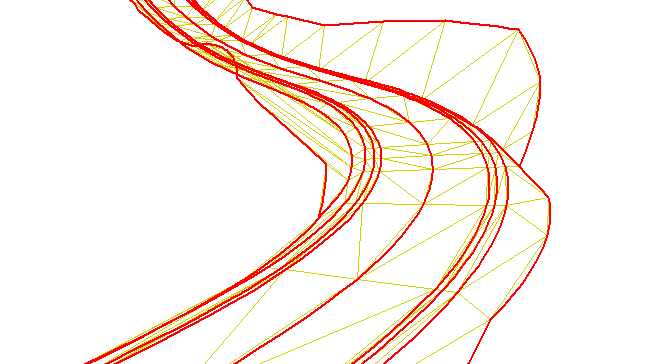

Figure: Example of breaklines and triangle net exported to LandXML.

Warning

The deviation between 3D lines and triangle net (arrow height) in this export increases with the distance between cross-sections.
