Export to Google Earth

Use this dialog to export the presentation to a Google Earth KMZ file.

Where to find the dialog

In the File menu, select Export...

You can choose to start Google Earth automatically after export, provided the program is installed.

Coordinate system

This field shows which coordinate system applies to the project. Note that export to Google Earth is not possible if no coordinate system is defined in Gemini Terrain.

Transparency factor

With this option, you determine how transparent the data will appear in Google Earth. 1.0 means no transparency.

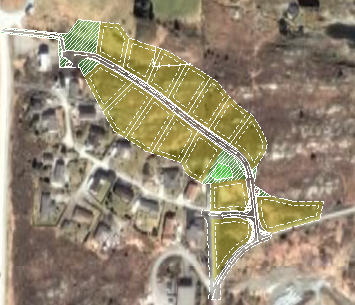

Example of a zoning plan exported with factor 0.4

You can select which objects to export to Google Earth. Note that raster data in Google Earth often has low resolution. If you have defined raster data with high resolution in your project, these can be included in the export to Google Earth.
