Expand Layer

Use this dialog to expand a layer to the left, right, or both sides of the centerline.

Where do I find the dialog?

Right-click in the Group Editing dialog and select Expand Layer...

Available Methods

You can choose between four methods:

  1. Horizontal
  2. Extrapolated
  3. Slope
  4. Parallel

For the first three methods, you must specify the horizontal distance.

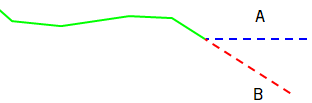

Example of horizontal and extrapolated expansion

A* = Horizontal, B* = Extrapolated

For the Slope method, you must also specify the desired slope.

For the Parallel method, you must specify which layer to expand in parallel with.

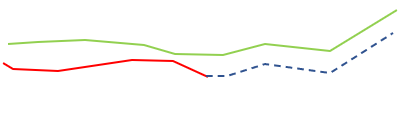

Example of parallel expansion

Example of parallel expansion
