Minimum Ditch Depth

Use this dialog to define the minimum ditch depth.

Where to Find the Dialog

In the toolbox, select SFI Properties..., go to the Road Body tab, and open the Side Area table.

This table overrides the values in the surface descriptions table.

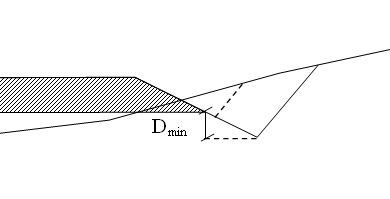

Minimum ditch depth

VIPS Import

The import reads the contents of the VIPS table: Min ditch depth.
