Riprap Layer

Use this dialog to define riprap layers beneath cut earth surfaces (6-surfaces) on the left and right sides of the centerline.

Where can I find the dialog?

In the toolbox, select SFI Properties..., go to the Road Body tab, and open the Substructure table.

If an 8-surface directly follows the last 6-surface, a riprap layer will also be constructed beneath it.

Sections

Specify riprap using "From profile - To profile." There is no limit to the number of sections (intervals). If there is a gap between two sections, no riprap layer will be constructed in that area.

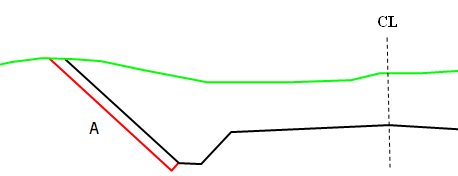

Figure: A (red line) = Riprap layer
