Import Layers from Template¶

Use this dialog to import layers from a template (SFI model). The template must contain contours (packages) with defined layers.

Where to find the dialog¶

In the toolbox, select SFI Properties..., then Tunnel - Manual Description - Import Layers from Template.

Note

You can create your own templates using the Save as template... option in the SFI model's properties tab.

The program includes, among others, a template for tunnel shoulders. This template contains three different shoulder types.

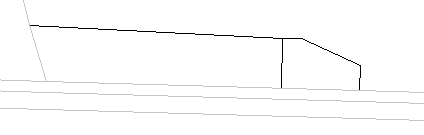

Shoulder type 1

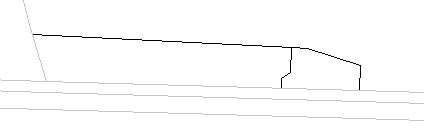

Shoulder type 2

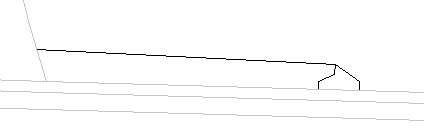

Shoulder type 3
