Presentation Rule for Slope Arrow

Use this presentation rule to show the direction in which the line slopes. You can also choose to display the value in per mille. All elements in a line object receive a slope arrow, except those with zero slope.

This presentation rule is useful in many contexts, for example, to document that measured water and sewage pipelines are laid according to current requirements.

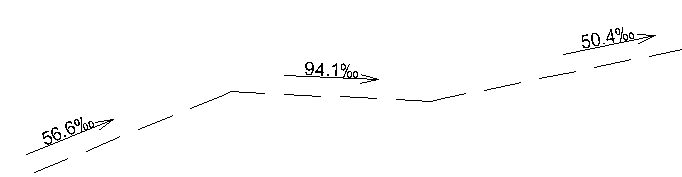

Example of a stormwater pipe with slope arrow and value
