Edit Legend

Use this dialog to create new or edit existing legends. You can define multiple legends in a project and insert them into the plan view or on sheets in the presentation drawing.

The content of a legend can be retrieved from an application layer or defined manually directly in the dialog.

Retrieve Symbol from Application Layer

To retrieve symbols from an application layer, you must open the dialog while in a terrain model drawing. The dropdown list shows all application layers that are open in the drawing.

When you select an application layer, the symbol list window displays all presentations defined in the layer. By checking Show only used, you will only see presentations that are in use in the drawing. The list shows one object type at a time. You can switch object type by checking Polygon, Line, or Point.

Procedure

  1. Open terrain model drawing with application layer
  2. Select Gemini Terrain Settings... - Legends on the toolbar
  3. Select New from the context menu (right-click in the list)
  4. Enter Name and Title
  5. Select the first relevant application layer in the dropdown list
  6. Check Polygon
  7. Select symbols to include and click Add >>
  8. Repeat steps 6 and 7 for the other symbol types (Line and Point)
  9. Select the next relevant application layer and repeat steps 6 to 8
  10. Continue until all desired symbols are added

Define Symbol Manually

You can define symbols manually directly in the legend dialog, in the same way as you set up presentation rules in the application layer. Use the option New symbol....

Editing Symbols

You can edit symbols, adjust the order of symbols, and insert information lines. The options for this are found by right-clicking in the legend list window:

  • New info line
  • New symbol...
  • Edit symbol...
  • Delete
  • Up
  • Down
  • Split symbol

Note

Composite presentations for Slope and Point cloud can be split in the legend. Select Split symbol from the right-click menu.

Example of Splitting

Slope before splitting

Slope after splitting

Order and Editing

Note

You cannot change the order across object types. Object types are listed in the following order:

  1. Polygons
  2. Lines
  3. Points

You can also left-click in the description column and edit the text directly in the list.

Example:

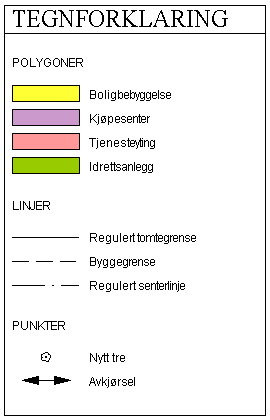

Example of order by object type

Inserting Legend

The function to insert a legend into the plan view or presentation drawing is found in the toolbox.

Icon for Legends...**
