Presentation Rule for Line Painting¶
Use this dialog to specify presentation rules for line painting, such as road marking. There is a dedicated application layer template for road marking: vegmerking.al_.
This presentation rule creates surfaces from symbols for 3D visualization. In the main presentation setup dialog, you can link predefined materials.
Where do I find the dialog?¶
On the toolbar, select Gemini Terrain Settings... and then Line Painting: Presentation Rules under Common Settings.
Examples of use¶
Wall (map presentation)¶
Example of wall with dashed line
Line 1:
- Type: Dashed
- Offset: 0
- Width: 1
- Length: 1
- Gap: 0
Line 2: None
Noise barrier (plan presentation)¶
Example of noise barrier with wavy line
Line 1:
- Type: Wavy
- Offset: 0
- Width: 0.1
- Length: 0.5
- Gap: 0
Line 2: None
Contour lines in 3D view¶

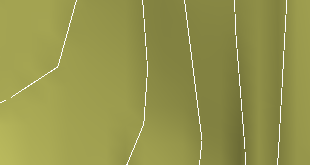

Example of contour lines with delta Z
- Delta Z: 0.1
Line 1:
- Type: Straight
- Offset: 0
- Width: 0.2
Tip
You can also use this presentation rule to highlight other lines in 3D, such as boundary lines.
