Presentation Rule Figure Filling

Use this function to define a rule that fills a polygon with figures.

Where do I find the dialog?

This dialog is accessed through presentation rules in application layers for polygon objects.

Configuration

Here, you must specify which figures to use and placement points in the form of a grid. You can also set a randomness factor for placement and height.

By default, these factors are set to 0, meaning the figures are placed at the grid points without scaling the height. The maximum randomness factor is 1.

Example

You can for example use the function to fill a polygon with trees.

Standard Placement

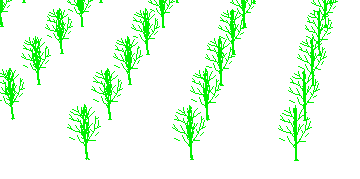

The figure below shows an example with the default randomness factor for both height and placement.

Standard placement of figures

With Randomness Factor

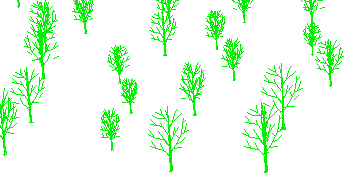

Here, the randomness factor is set to 0.6.

Placement with randomness factor
