Merge Triangle Nets

Use this dialog to merge triangle nets. If the meshes overlap, the triangles from the mesh you selected before opening the function from the context menu will take precedence.

Where can I find the dialog?

In the terrain model drawing context menu, select Merge Triangle Nets...

Instructions

  1. Select a triangle net in the view.
  2. Choose Merge and Triangulate... from the context menu.
  3. Point to the triangle net to be merged.
  4. Select the mode.
  5. Select the result application layer.
  6. Click OK to execute the function.

Examples

The examples below show that the function supports many different situations. In these examples, the automatic connection mode is used.

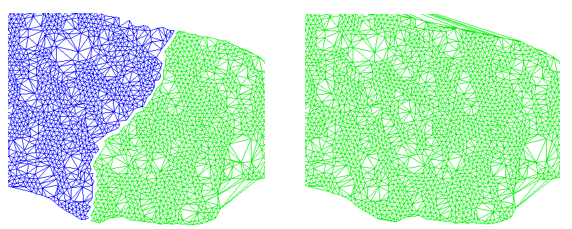

Gap between triangle nets

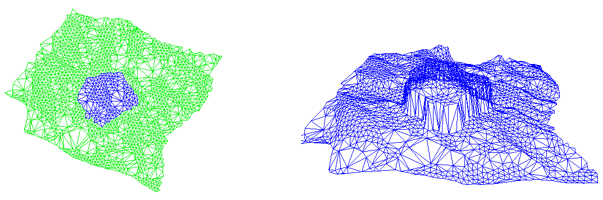

Triangle net with island mesh

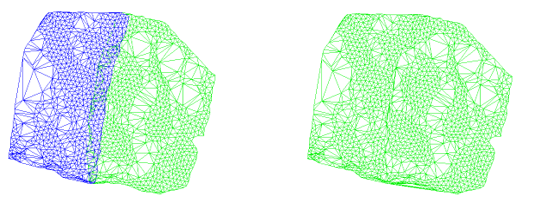

Partially overlapping triangle nets

Completely overlapping triangle nets

You can also use manual connection mode. In this case, you draw a polygon to define the area to be merged.
