Extrude Triangle Net to Solid Object¶
Use this dialog to create a solid object from a triangle net.
Where do I find the dialog?¶
Select the triangle net in the model, right-click, and choose Extrude triangle net to solid object...
Available Methods¶
There are three methods:
- Extrude triangle net to elevation
Can be both below and above the triangle net, but not between the minimum and maximum elevation in the mesh. - Extrude triangle net vertically
- Extrude triangle net normal to
Example

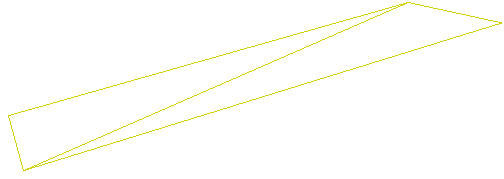

Starting point

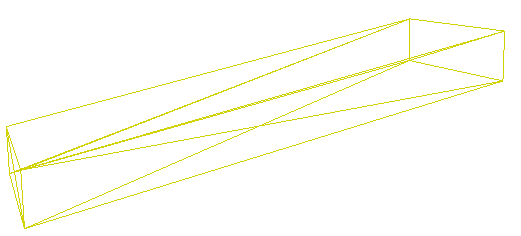

After extrusion to elevation

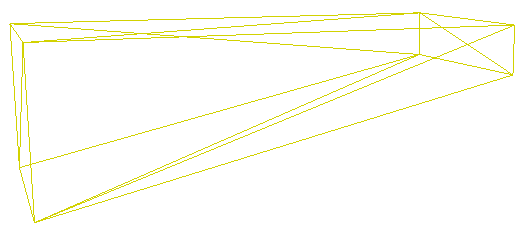

After vertical extrusion
