Fence/Guardrail

Use this dialog to define presentation rules for fences and guardrails in application layers.

Where do I find the dialog?

On the toolbar, select Application Layer - Presentation - Fence/Guardrail.

Settings

You specify values for distance between posts and top height of fence/guardrail. For New Jersey, the distance between posts becomes the element length.

Right and left side indicates which side of the post the guardrail is placed on.

Examples

Standard guardrail

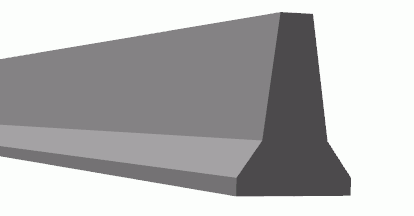

New Jersey

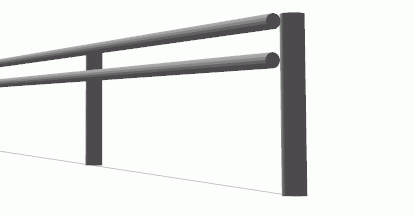

Guardrail (pipe)
