Sun/Shade Map

Use this dialog to create a sun/shade map. The starting point is a terrain model, and the result is polygons for areas with and without sunlight.

Where can I find the dialog?

In the toolbox for Planning, Design, and Execution in the terrain model drawing, select Create thematic map (landscape analysis)...

Sun Position

The program calculates the shadow according to the sun's position. You can enter the Solar Inclination and Azimuth manually, or select Edit Sun... to have these values calculated automatically based on the chosen time and location.

Solar Inclination

The angle between the sun's direction and the horizontal plane.

Azimuth

The angle of the sunlight in the XY-plane relative to geographic north. The angle is measured clockwise.

Data Basis

The function uses the grid model, but you can also include buildings and 3D objects that have been inserted into the drawing.

Performing the Analysis

Once the sun's position is set, create the sun/shade map by clicking Execute. After the analysis is complete, you can paste the polygons onto an application layer. The program includes a template with presentation rules that can be used when creating the application layer.

Examples

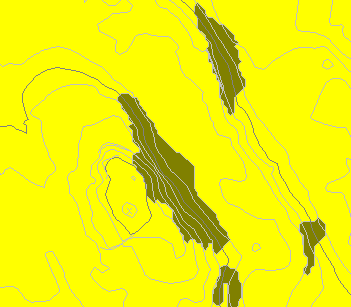

Sun/shade analysis against terrain grid

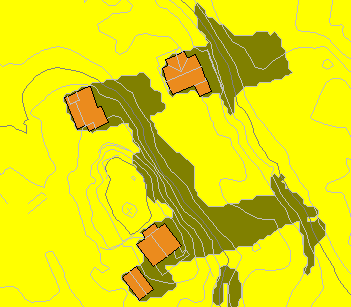

Sun/shade analysis against terrain grid and 3D objects
