Layout Parameters for Longitudinal Profile¶

Use this dialog to define the appearance of the longitudinal profile.

Where do I find the dialog?¶

On the toolbar, select the Gemini Terrain Settings... icon and then Longitudinal Profile: Layout under Project Presentation.

Using the dialog¶

You can change grid and annotations by pressing the Define grid/axis texts... button.

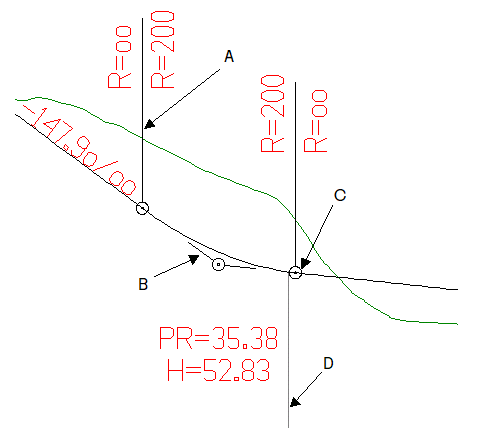

Figure: A = Radius line length, marking line color, B = Curve point line length, C = Curve point symbol radius, D = Divider line color

Parameters¶

Curve point symbol radius¶

Radius of circle that marks curve points. If this value is set to zero, no markings of vertical curvature will be made in the drawing window. Marking of horizontal and vertical curvature points with vertical lines from bottom of window to road line will also not be made.

Radius line length¶

Line length of line that marks radius. If this value is set to zero, no markings of radius or tangent points will be made in the drawing window.

Curve point line length¶

Line length of line that marks curve points. If this value is set to zero, no markings of curve points will be made in the drawing window.
