General introduction

Mesh operates under a few basic assumptions:

  • Every object has a unique GUID.
  • Every object is able to do binary serialization (read/write).
  • Every object has an associated version number.

"Model definition" vs "model"

A model definition is a description of a domain with respect to object types, attributes, and relations. It defines what information is available through Mesh for this domain. An instance of a model definition is simply called a "model". See also the Modelling.

The EnergySystem model definition

This is the Mesh model definition made by Volue to cover the information needed by the Mesh connected modules. It defines the basic types to describe a hydro/thermal/wind system, case management and time series quality related to this.

Customer extensions

An important point in Mesh modelling is the capability for customers, and specific projects, to extend the EnergySystem model definition. This can be:

  • Adding new attributes to existing types.
  • Modifying time series calculation expressions initially provided by Volue.
  • Modifying time series attributes to have an expression.
  • Adding new object types.
  • Making new connections between objects.

This feature is widely used in large projects, but also applicable for smaller customers.

Managing customer extensions

Currently this is supported by use of Mesh namespaces. Changes made by customer/projects end up in the Custom namespace. This basic configuration also prevents customers from making changes on mandatory parts of the model definition. It's a simple solution while waiting for a full blown authentication/authorization feature.

Current process

Master model

The master model definition is maintained through a server owned by Volue connected to an Oracle database.

Model definition update

Mesh model definitions can be exported into a binary file by using the Model.ImportExport tool. These binaries normally have an .mdump extension and are not human-readable (and thus not suited for regular version control systems). The scope of the export can be specified through CLI options. The exports can also include the corresponding model instances from the model definitions.

Model.ImportExport can also be used to import .mdump files into a target system in order to perform an update of the model definition. A successful update of the model definition will include saving the target binary file as a Mesh resource, located in a folder called ObjectModelUpdates. The resource's name will consist of the name of the model definition and a timestamp. This storage is actively used to retrieve the base for delta-based updates.

In practice, model definition updates are done by using a script called ModelUpdate.ps1 which is distributed alongside release packages. However, this document delves deeper into the underlying process for updating, and indicates some of the problems that may arise along the way.

Throughout this document (and other literature) we'll use the term "model update" to refer to an update of the model definition (as well as its derived models).

Delta-based updates

This is the preferred approach for model updates. It performs the following steps:

  • Get the differences between the model definition which is currently installed on the target system (Base) and the new one to be installed (New). These can include:
    • Objects that exist in both versions, but are different (marked for updating).
    • Objects that exist in New but not in Base, i.e. created after the Base installation (marked as new).
    • Objects that exist in Base but not in New, i.e. removed from the model definition since the Base installation (marked for deletion).
  • Push the changes found in the previous point onto the target system.

In our current process, Base is the latest master model definition which the customer has installed (and potentially expanded on) on the target system, and New is a newer master model definition. The customer's own changes to the model definition are not taken into account when calculating the delta between Base and New.

Assign-based ("on-top") updates

This approach should be avoided, but experience shows that this sometimes may be the only way to fix some problematic cases. It's similar to forcing the model definition to change into a new state.

It performs the following steps:

  • Push objects from the New model definition to the target system.
  • If the target system accepts the incoming changes, it becomes the new model definition.

This operation does not delete anything, just stores unconditionally on top of the existing state. Alternatively, it is possible to specify that only whatever's missing should be imported by passing the -w ImportOnlyMissingElementTypesAndDefinitions option to the Model.ImportExport tool.

Challenges related to current approach/toolset

Delta-based

Prior to the last step (push), the Model.ImportExport tool will check the following:

  • Problem D1: An object is marked as new on the, but this object does exist on the target system (based on ID lookup).
  • Problem D2: An object marked for updating does not exist on the target system.
  • Problem D3: An object marked for deletion does not exist on the target system.
  • Problem D4: An object is marked for updating, but is really a switch between a time series attribute being a calculation or not.
  • Problem D5: Version number conflicts. For example, pushing a version with a lower number than the target object's. In general, the versioning is not active by default on Model.ImportExport due to the lack of a global version number that can be applied across database instances.

The reason behind problems D1..D3 is hard to determine. Some probably come from the target system missing validations and accepting operations that should not be allowed/authorized. Another reason could be a wrong understanding of the latest installed master model definition (Base) when doing version comparison.

An "on-top" update can probably also lead to a situation like this, for instance because parts that should be removed from the model definition are still not removed.

There exist some other problems as well:

  • Problem D6: Assume that there have been changes to an expression both in the master model definition and the customer's target system. In this case the delta-based import will favor the changes from the master model definition over the customer's.
  • Problem D7: An attribute has been removed from the master model definition, and then recreated on master with the same name. Since the re-created object will now have a different GUID, this will appear as a new object in the delta update cause a duplicate name conflict on the target system.

As a side note, in the past there had been issues arising from conflicts related to the usage of PDCTimeseriesReferenceEntity, which is no longer used in our master model definitions. Since delta updates only handle differences between two versions of master, this means that such conflicts should no longer apply. Note that there can be still some PDCTimeseriesReferenceEntity objects in the customers' own models, but they won't be affected by the delta import since they're created by the customers themselves.

Assign-based ("on-top")

The following problems can appear on this approach:

  • Problem A1: Some enumeration values related to no value seem to be recreated (especially the Undefined value) with a new GUID. This dangling definition may also create problems on imports.
  • Problem A2: Because this approach does not delete anything, the target model definition may end up in a situation where leftovers from a previous version can create problems at some point. An immediate problem is e.g. when the master definition has changed the type of a given attribute, such as from double to integer, which would change the attribute's GUID. If the attribute's name remains the same, a conflict would arise when trying to perform the update.
  • Problem A3: The version of the model definition stored in the ObjectModelUpdates resource folder will not give a correct picture of the updated state (ref Problem A2). This may create problems on later attempts to do delta-based updates.

Example

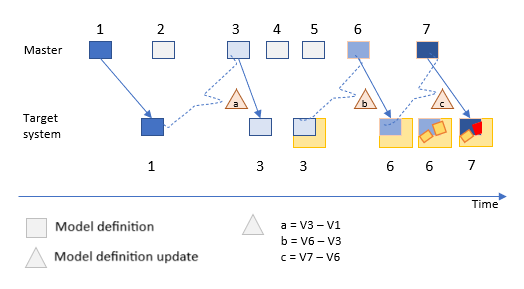

Consider the following sequence:

Step 1

A Mesh model definition (MD) is in a master state 1. It is installed on a target system. This should be straightforward, no problems at all.

The MD 1 is also stored as a file inside Mesh Resources, within the ObjectModelUpdates folder.

Step 2

The master model definition is extended, and the version 3 is going to be updated on the target system. There have been no customer changes on the MD on the target system at this point. A delta update is provided from MD 3 "minus" MD 1, illustrated as triangle a. There should be no problems doing this update.

The ObjectModelUpdates folder will now also contain the MD 3.

Step 3

Now we wish to update the target system to master version 6, but the MD on the target system has been modified as well by the customer. However, as the figure shows, these changes merely extend the target system's MD, but do not modify the "core" MD 3. The delta update b is done based on master MD 6 minus master MD 3. There should be no problems doing this update either.

The ObjectModelUpdates folder will now also contain the MD 6.

Step 4

As before, we wish to update the target system to MD 7. However, in this case there have been customer changes on core parts of the MD originating from master (represented by the two extra boxes within the MD), so that the delta update c would be in conflict with such customer changes. A merge conflict will happen in this case, with some of the problems indicated by D1..D4 above.

If there are changes on both master and target system, the master definition will be pushed. In many cases this is accepted by the target system, so that the master MD is favored over the local one.

Summary

This document provides some background information on the process of model definition maintenance. It shows that there are basic features in the tools supporting the maintenance process. Experience shows that problems may arise, which must be worked around using miscellaneous cleanup tools. In some cases, the only solution is to perform an "on-top" model update, which is not usually recommended because it can cause further problems later on.
