gRPC client TLS certificates
Mesh server gRPC interface can be configured to use Transport Layer Security (TLS) and if used then only TLS connections from the clients will be accepted.
Certificates
TLS uses X.509 digital certificates, further on referred as TLS certificate. Such certificate contains, among others, public key and information about the issuer. Additionally for each TLS certificate there is a corresponding private key. Contrary to the public key, it is a secret and must be kept secure. Those are needed for server authentication and encryption of the transmitted data.
There are two types of TLS certificates:
-
Certificate Authority (CA) certificates than can issue/sign other certificates. Top level CA certificates are self-signed and are called Root CA certificates. Other CA certificates are called intermediate.
-
End-entity certificates identifying a person, system, organization, etc. They are issued by CA. They can't issue other certificates.

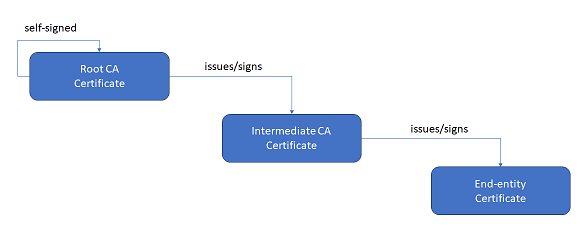

Root and intermediate CA certificates form so called chain of trust for a given end-entity certificate:
gRPC clients
The gRPC client needs to be able to verify if the TLS certificate used by Mesh server gRPC interface is trusted.
Self-signed certificates
For self-signed certificates, not issued by publicly trusted CAs we must always provide the certificate in PEM format to the gRPC client. The certificate must be accessible by the gRPC client, e.g. no password protection, etc.
However, there is option to add such self-signed certificate to operating system trusted roots. In such case, please refer to the next section. Adding certificate to trusted roots should be handled by the system administrator and is out of scope for this document.
Note: gRPC clients don't need Mesh server private key(s). Those must be kept secure on the Mesh server machine.
Certificates signed by trusted CA
For certificates that are signed by publicly trusted CA let's look at how two of the most popular gRPC implementations handle them.
gRPC core (C implementation)
For Linux, FreeBSD and MacOS: If the certificate issuer1 is in the operating system trusted roots, then gRPC runtime will load it automatically and nothing extra is required. Windows certificate store is not supported at the time of writing this document: gRPC 1.59.0.
gRPC core implementation also comes with its own list of trusted roots, see: https://github.com/grpc/grpc/blob/master/etc/roots.pem
If the certificate issuer1 is in that list then nothing extra is required.
Otherwise, the certificate must be provided in PEM format to the gRPC client.
gRPC .NET
If the certificate is in the operating system trusted roots, then gRPC runtime will load it automatically and nothing extra is required.
Otherwise, the certificate must be provided in PEM format to the gRPC client.
