Configuration

For functionality description and configuration please refer to: Mesh service installation guide.

Testing

OAuth 2.0

For Microsoft Entra ID environment you can follow the steps below:

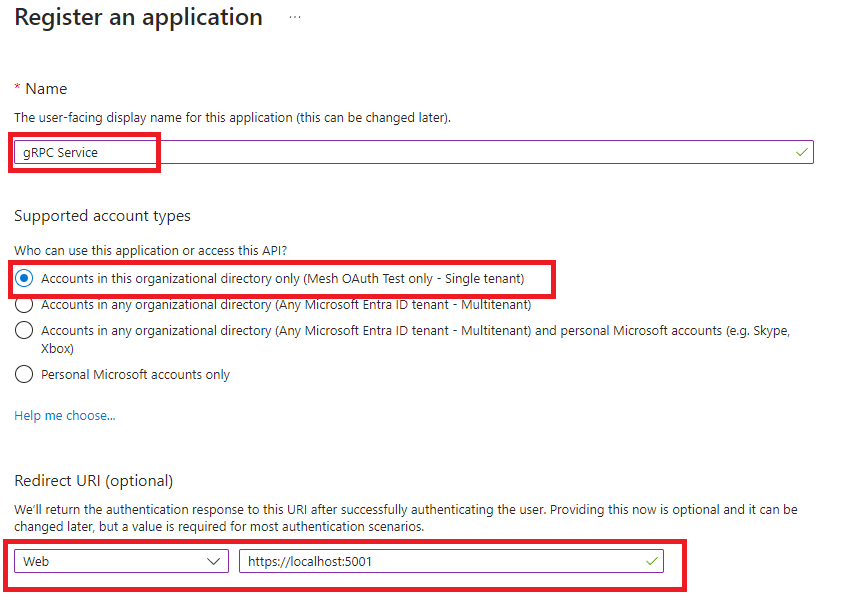

  • For the protected API (i.e.: Mesh gRPC server) create an application registration:

alt register_protected_api

Authorization code flow

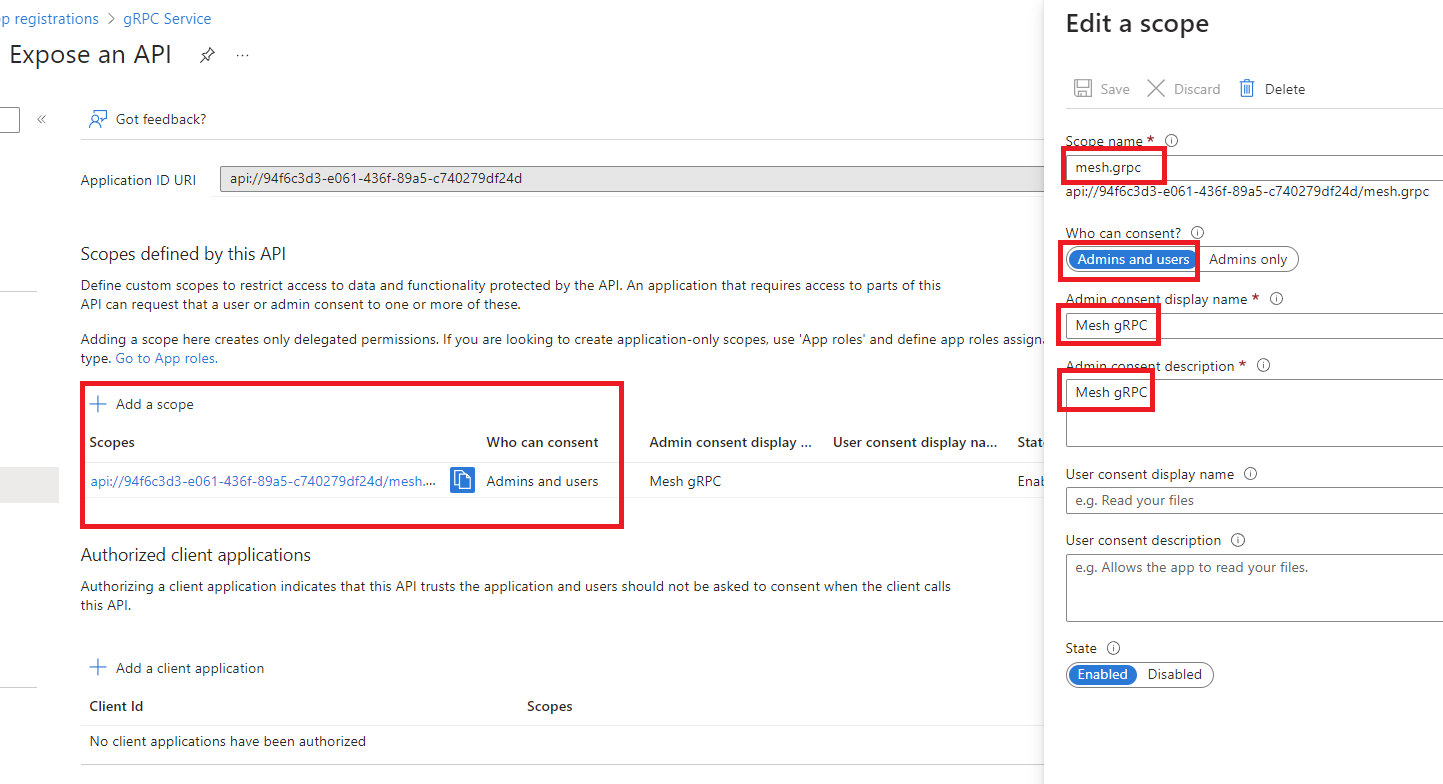

  • Expose API of the created application and add a scope:

alt expose_api

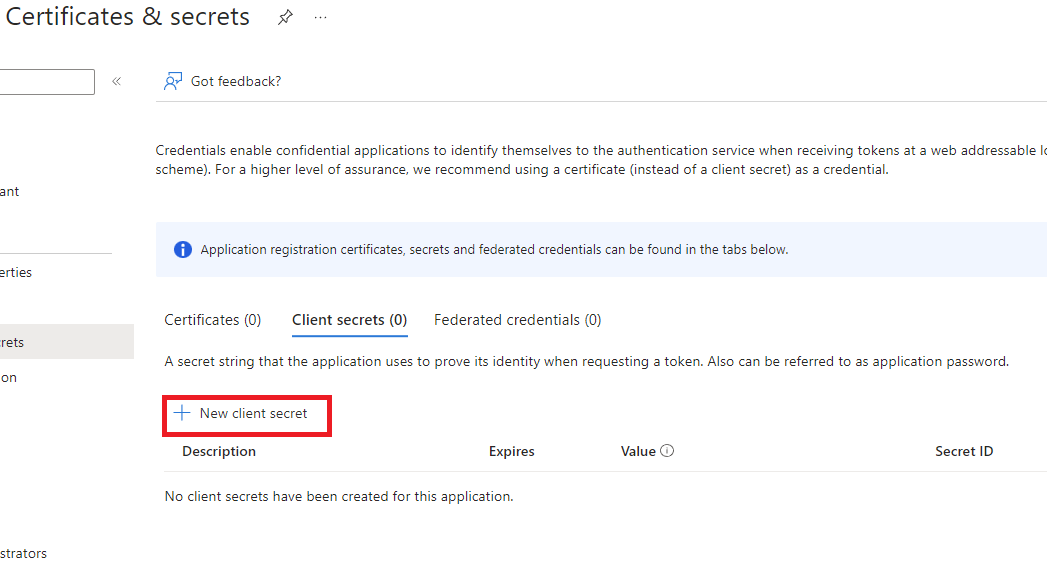

  • Create client secret and save its value:

alt create_client_secret

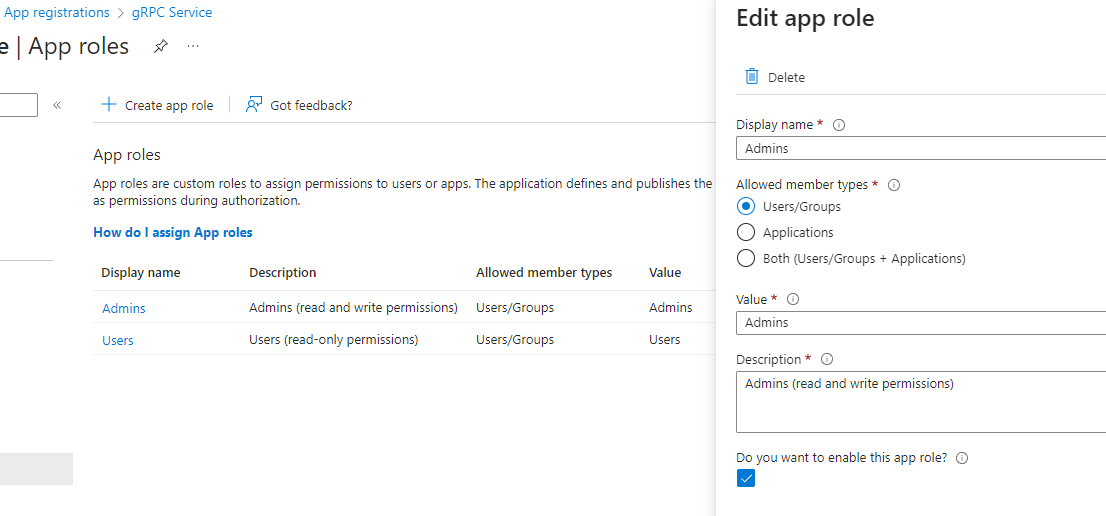

  • Create app roles for the users/groups:

alt user_roles

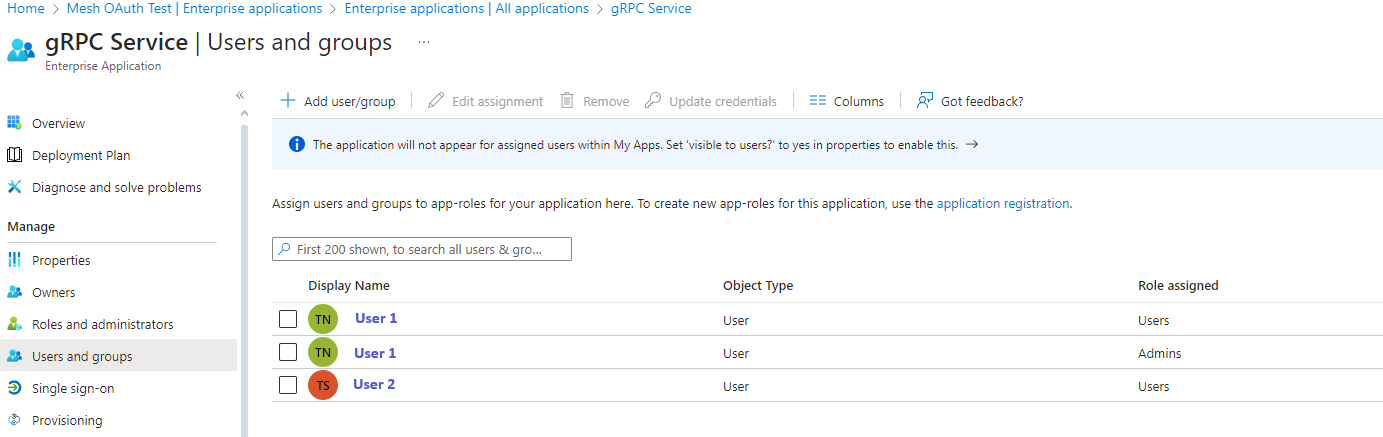

  • Assign app roles to the users/groups:

alt assign_user_roles

Now we want to get an access token. First we need to call authorize endpoint and get authorization code. Open internet browser, enter the following URL and change the parameters according to your setup:

https://login.microsoftonline.com/YOUR_DOMAIN.onmicrosoft.com/oauth2/v2.0/authorize?response_type=code&client_id=YOUR_CLIENT_ID&redirect_uri=REDIRECT_URI_FROM_STEP_1&scope=openid%20profile

In return we should get something like this:

https://localhost:5001/?code=0.AUsA9qdgUwMwDkOIVHHdOulTT9PD9pRh4G9DiaXHQCed8k1LAHs.AgABAAIAAAD--DLA3VO7QrddgJg7WevrAgDs_wUA9P9bchFZhU35cRjwyL4Ody0v5VVAPW5RhSdysOasDYmhU-QSjiZVIiL_Ma8fxNlGdoZiM0bi_fQ0alKr8qEB-ZhezENOme3DdYd11Q_1_6gVqtgUV_yqRO8oHvh7mma14QD_r41ClgcZhxYvTLlDyAddqqL4Qk92-7u2kaMYfu9RlinZ9DoCI29-GGjTAgxUePlQgVBfMmquKaQG2sBs3tbEhi3prwZrzI-vqbRel0mur7ssn2-2YKREjmL4d9cc04V0mYoy612SEJm3UgZMjvby5A9M28pYFUdlBNSOoNl8tYku7jRVROYGESJL5OxPRYEA-yecPo2LtHUqsnp6X9CEV4s8z7G8rMmQlYZibzuppr5WJ_AWj_d_jaZrYJI2oJFO3KrkoRGvK-v71l_6bdVxesMc2m5QQFInHMF6_P_9NqxqevKq1nub98ms8DqgfIcUatYLxcVTIBKFIDrSLcYYDLMkTvuIpTmTBX0dSbdTcYL8tNCcEh197bUPZHIu8jHaL-eV8wQm1TprzsbJun6y0e1C5ExYe3IfUFbl6uomjcb6VDqZV4l3RSiFGJxe9af7CPzbWSqnx7Z0D4c3H1BIxul8j_oL1OgSL1wIJlLnx88XQgHz9p0v0k9dCGSUK-95Mjq8BiOG7URWJx_Q6SozZvsgm0TT7GBv5-NTigRHJL7L6iAOZTl4vhFl9evex7SX5N3Y_5w_N1h2kvhPA7ufRlJaF77N6t2hvxsiJ85Q8Yby76zN2f3fxhvUBze1YQT25wGTE8znP79dVTll2EVNk--FYn7qTzc5P6aOzhlgvFHS6IsDg18yefI_S0_7jDDTVLopHPdpIqY&session_state=ba3502a4-903f-461c-bbdb-995e4d76ed62#

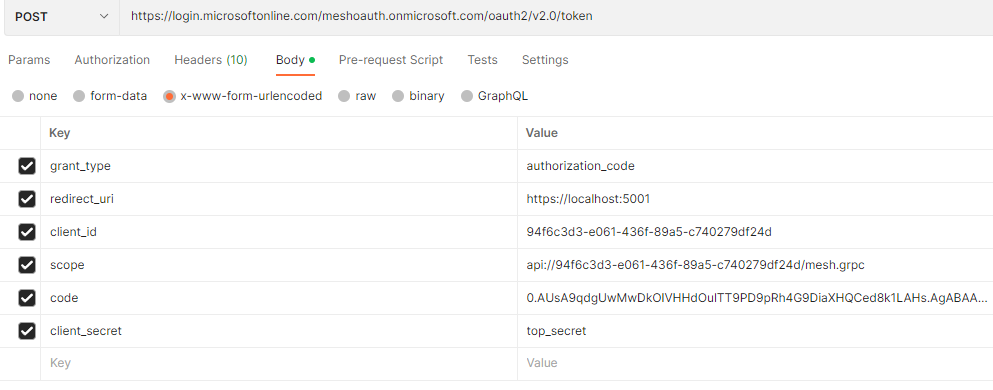

Copy the code parameter value. Now we need to make a POST request to the token endpoint. For this I'm using Postman, but you can use also curl or other software.

alt postman

  URL: https://login.microsoftonline.com/YOUR_DOMAIN.onmicrosoft.com/oauth2/v2.0/token
  grant_type: authorization_code
  redirect_uri: REDIRECT_URI_FROM_STEP_1
  client_id: YOUR_CLIENT_ID
  scope: YOUR_SCOPE_FROM_STEP_2
  code: CODE_GOT_FROM_TOKEN_ENDPOINT
  client_secret: YOUR_CLIENT_SECRET_FROM_STEP_3

You will get a response message with access token. You can check the access token's content in e.g. jwt.io. The access token could now be used to call e.g. Mesh gRPC server. For gRPC the token needs to be send in the Authorization header when making a call to the API, like:

Authorization: Bearer <token>

Client credentials flow

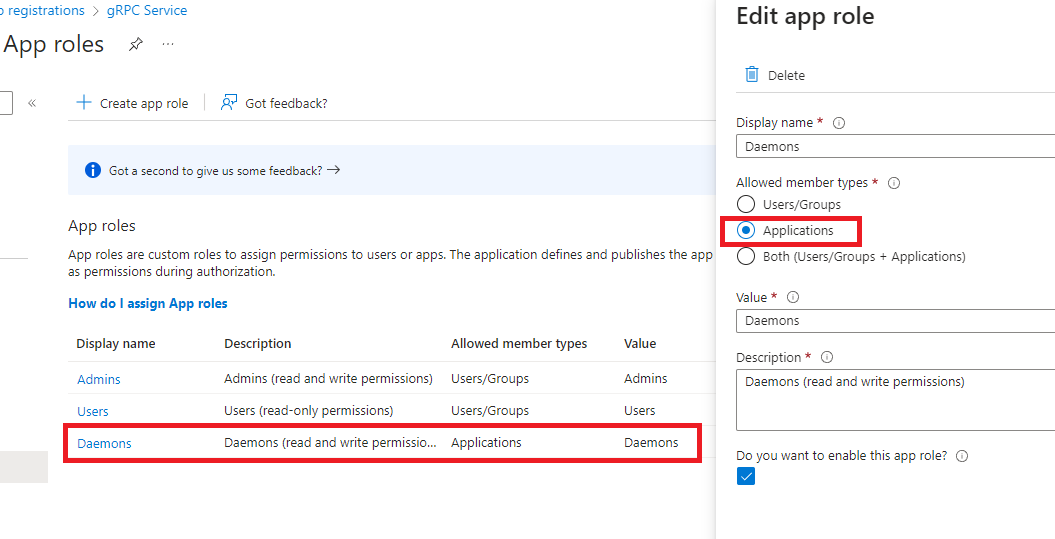

  • In the protected API application create app roles for the applications (daemons):

alt app_roles

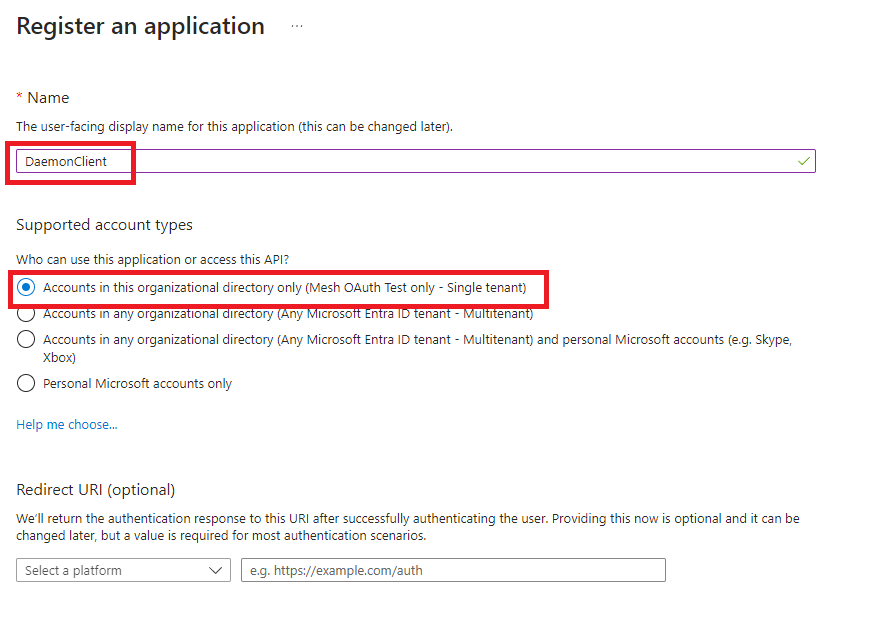

  • For the daemon client application follow the steps below. Create new application registration, leave the Redirect URI empty:

alt register_daemon_client

  • Create client secret and save its value.

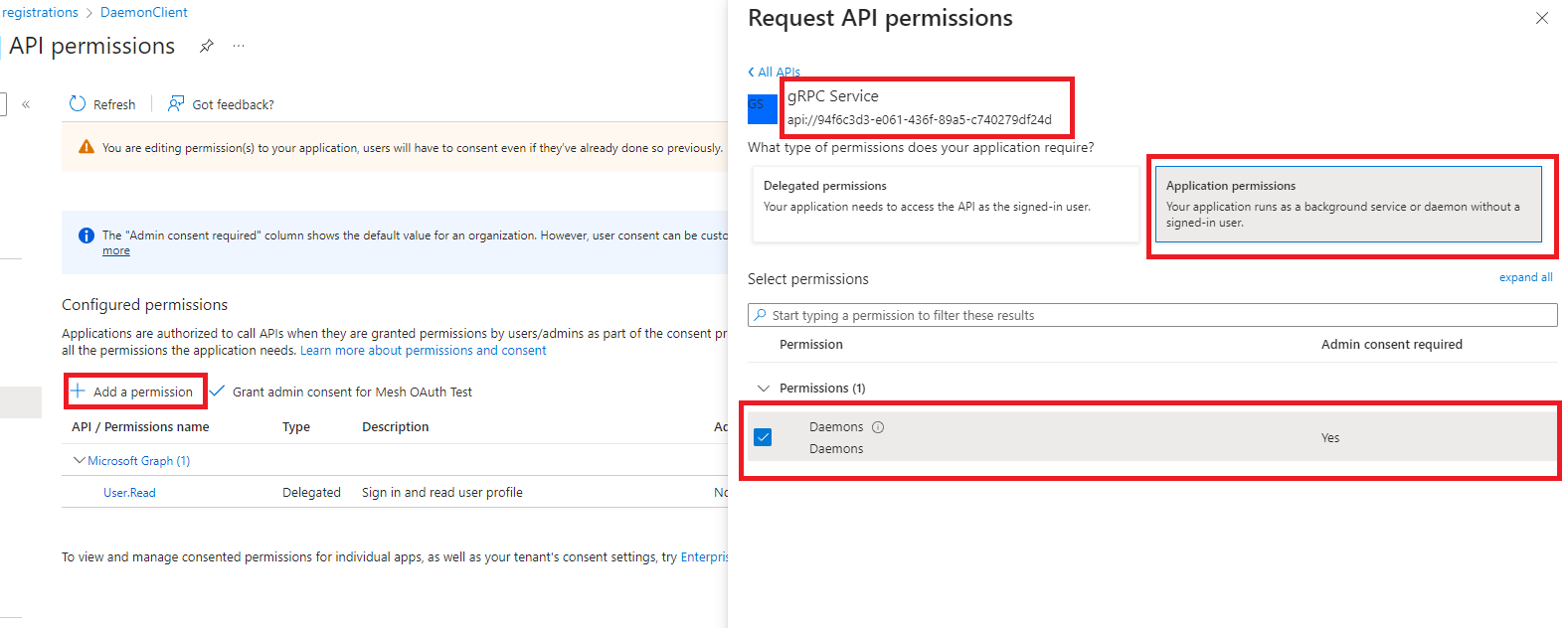

  • Request API permission for the app role created in step 1:

alt request_api_permission

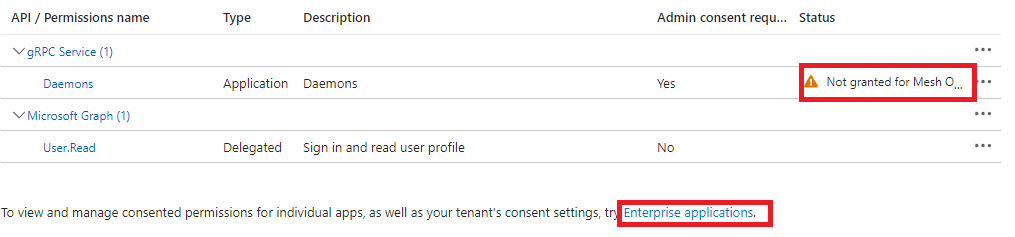

  • Now we need to grant consent for the requested permission. Click on the Enterprise applications link:

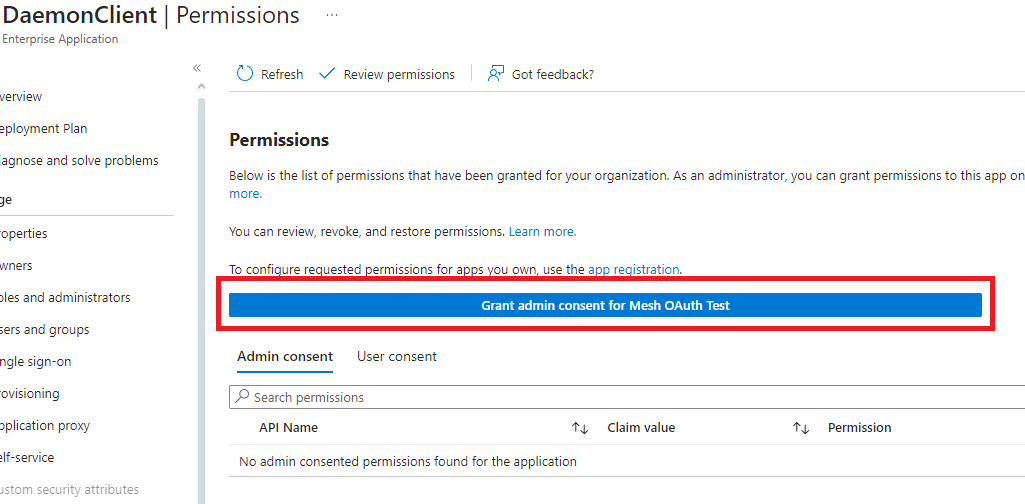

alt go_to_grant_permission alt grant_permission

  • At the end we should see proper status in the API permission view:

alt api_permission_status

Now we want to get an access token. We need to make a POST request to the token endpoint. For this I'm using Postman, but you can use also curl or other software.

  URL: https://login.microsoftonline.com/YOUR_DOMAIN.onmicrosoft.com/oauth2/v2.0/token
  grant_type: client_credentials
  client_id: YOUR_CLIENT_ID (the deamon app ID)
  scope: PROTECTED_API_APPLICATION_ID_URI + '/.default' (e.g. api://94f6c3d3-e061-436f-89a5-c740279df24d/.default)
  client_secret: YOUR_CLIENT_SECRET_FROM_STEP_3

You will get a response message with access token. You can check the access token's content in e.g. jwt.io. The access token could now be used to call e.g. Mesh gRPC server. For gRPC the token needs to be send in the Authorization header when making a call to the API, like:

Authorization: Bearer <token>

Python SDK

To test the access token you can also use one of the Python SDK's example scripts.

You can also extend the example script with e.g. MSAL library to acquire the access token in the background.

See documentation on how to connect and authorize using Mesh Python SDK to a Mesh server that is using OAuth authorization: https://volue-public.github.io/energy-mesh-python/external_auth.html

Kerberos

Python SDK

See documentation on how to connect and authorize using Mesh Python SDK to a Mesh server that is using Kerberos authentication: https://volue-public.github.io/energy-mesh-python/kerberos.html
