Time series

The primary data retrieved from the Mesh server are time series. A time series is a sequence of data points that occur in successive order over some period of time. They can represent different kinds of data depending on its properties. For example, how much power a hydro plant generates at any given time or how much water passes a gate per hour can be represented as a time series.

Mesh time series

Each point in Mesh time series contains the following fields:

• utc_time:
  • timestamp of the point (milliseconds since UNIX epoch 1970-01-01) in UTC
• flags:
  • status flag, 32-bit flags providing extra information like: is the point value correct or missing.
    When working with existing time series, preserve the flags unless you have a reason to set it to something else. When creating new time series, flags can be set to the default, which is OK = 0.
• value:
  • double-precision floating point value of the point

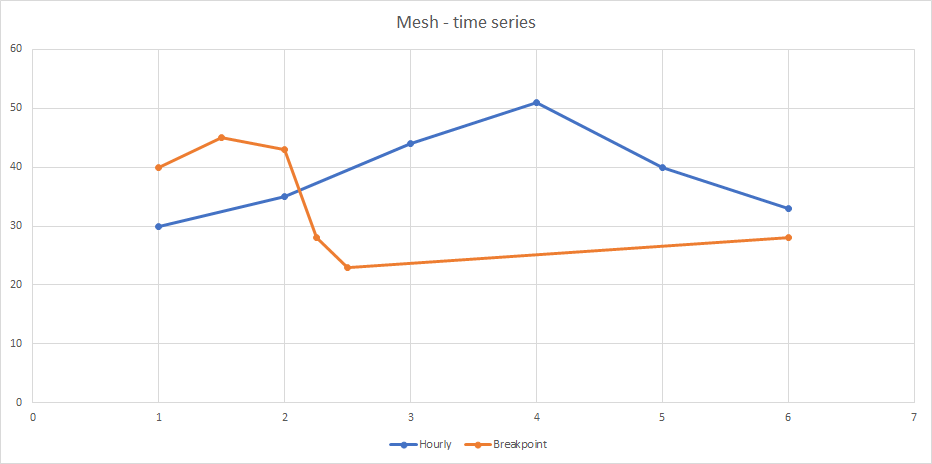

Resolution

The resolution defines the time step of the time series points. Some examples are hourly or daily resolutions. A special type of resolution is breakpoint. It means there is no time step restriction and points can be provided for any timestamps.

Types

There are 3 main types of time series in Mesh.

Physical time series

Physical time series are stored (e.g. in database) as points with timestamps, flags and values. They are identified by unique time series keys and have meta-information like:

• curve type
• resolution
• unit of measurement (which can be undefined)

Physical time series can be connected to a Mesh object via a time series attribute. Either directly or as part of a calculation.

Virtual time series

Virtual time series do not contain actual data points but an expression that is used to compute data points as a result. The calculation expressions may reference other virtual or physical time series or constants. For example:

"##= %'/TestResourceCatalog/physicalTimeSeries' + 3\n"

Both virtual and physical time series are not stored on Mesh model level, but in a storage called resources.

We strongly suggest to use calculation time series for new models.

Calculation time series

Calculation time series are similar to virtual time series, but they are a newer concept and are more flexible. They do not contain actual data points but a calculation expressions that may reference other time series types, attribute values or constants. For example:

"##= @d('.DoubleAttribute') + @t('.TimeSeriesAttributePhysical') + @t('...TimeSeriesAttributeCalculation')\n"

The important difference is that calculation time series use model paths in calculation expressions whereas virtual time series may only use other virtual or physical time series from the resources in calculation expressions. As a result, calculation time series may also use other attribute types in expressions, like an attribute of type double.

Expressions

Virtual or calculation time series expressions can use also functions like sum all values in a time series, find values and status for a time series at a given historical time, transform time series values from one resolution to another and many more. These functions are loosely arranged into groups representing a common category for those functions. See Mesh calculations and Mesh calculation functions for more information.
