PDLOG

About this function

The PDLOG function is used to give messages to SmG Event Log based on events occurring in SmG Calculator.

Syntax

  • PDLOG(d,s[,t])
  • PDLOG(d,s,t,d)
# Type Description
1 d Type of message to Event Log: 1010 = Information, 1011 = Warning, 1012 = Error.
2 s Message to be written to Event Log. The string may contain several macros to give the general message a more specific content. The macros are:
  • $start: Start of calculation period.
  • $end: End of calculation period.
  • $nvalues: Number of values being TRUE (value = 1) in time series.
  • $first: Point of time for first value being TRUE in time series.
  • $last: Point of time for last value being TRUE in time series.
  • $path: Full object path.
3 t Time series in the log message.
4 d Number of values to be written to Event Log from the time series.

Example 1

Difference =@MEAN(@T('To_MetSensor.Temperature_operative'))-
@MEAN(@T('To_NeighbourMetStation.Temperature_used'))
Deviation = @ABS(Difference) > 4
IF (@SUM(Deviation)) THEN
  @PDLOG(1011,'Temperature deviates, $nvalues, first time $first, last time $last',Deviation)
ENDIF
## = Difference

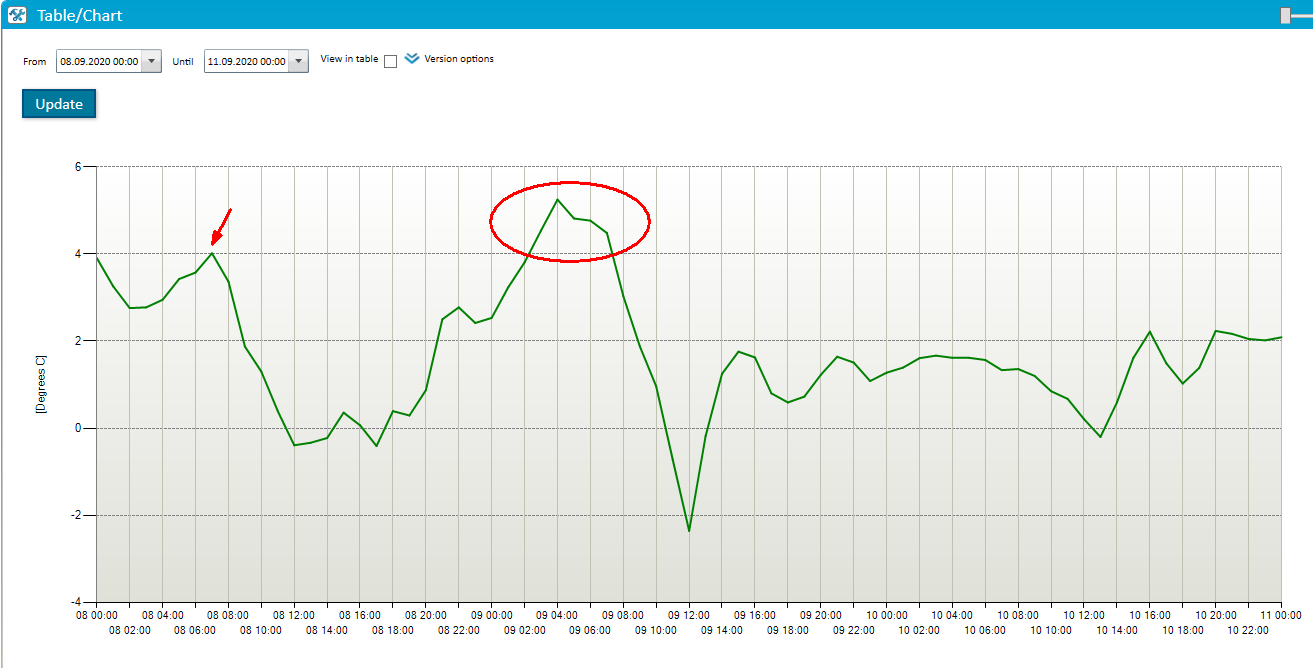

This image shows the result of the Difference time series in the calculation expression.

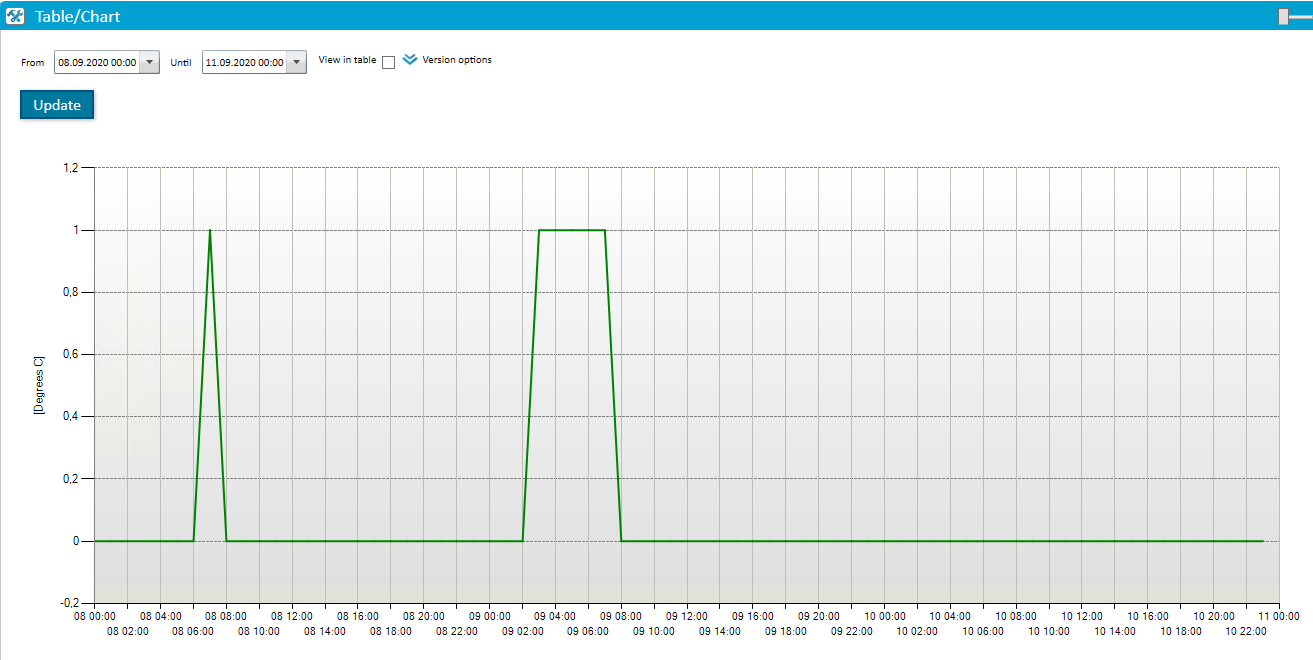

The calculation of the temporary time series called Deviation gives the following result:

This gives the following message in the Event Log:

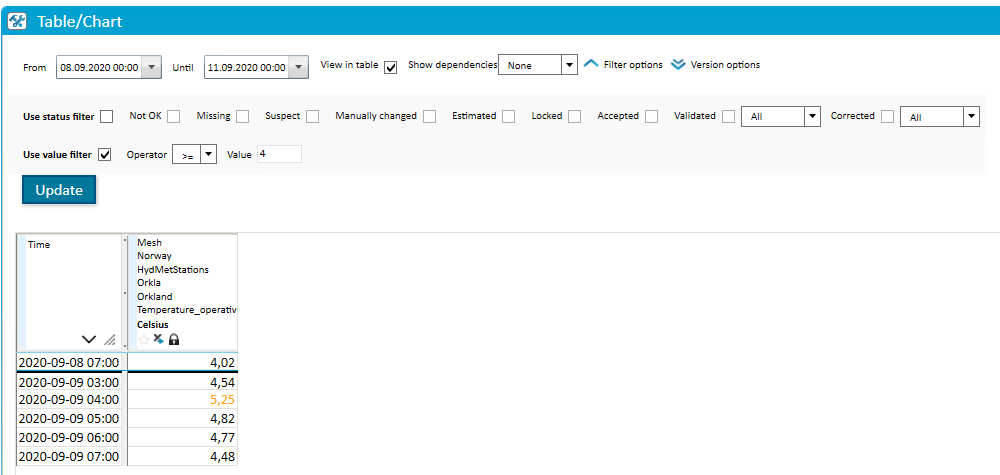

It is also possible to verify the result by using the built-in filtering function in Mesh:

Example 2

Compares an inflow accumulated time series with a historical version of the same time series. If the accumulated end value change exeeds 10% absolute value a message is created in SmG Event Log:

InflowSource = @t('.Inflow')
TransformHour = @TRANSFORM(InflowSource,'HOUR','AVG')
InflowAccumulated = @ACCUMULATE(0, '+0h'),TransformHour)* (3600/1000000)
AccumulatedDeviation= (@MAX(InflowAccumulated)-@MAX(@t('.Inflow_accumulated_version')))/@MAX(InflowAccumulated)
IF @ABS(AccumulatedDeviation) > 0.1 THEN
  @PDLOG(1010,'Inflow forecast deviates on time series,$path, period start $start, period end $end ', InflowSource)
ENDIF

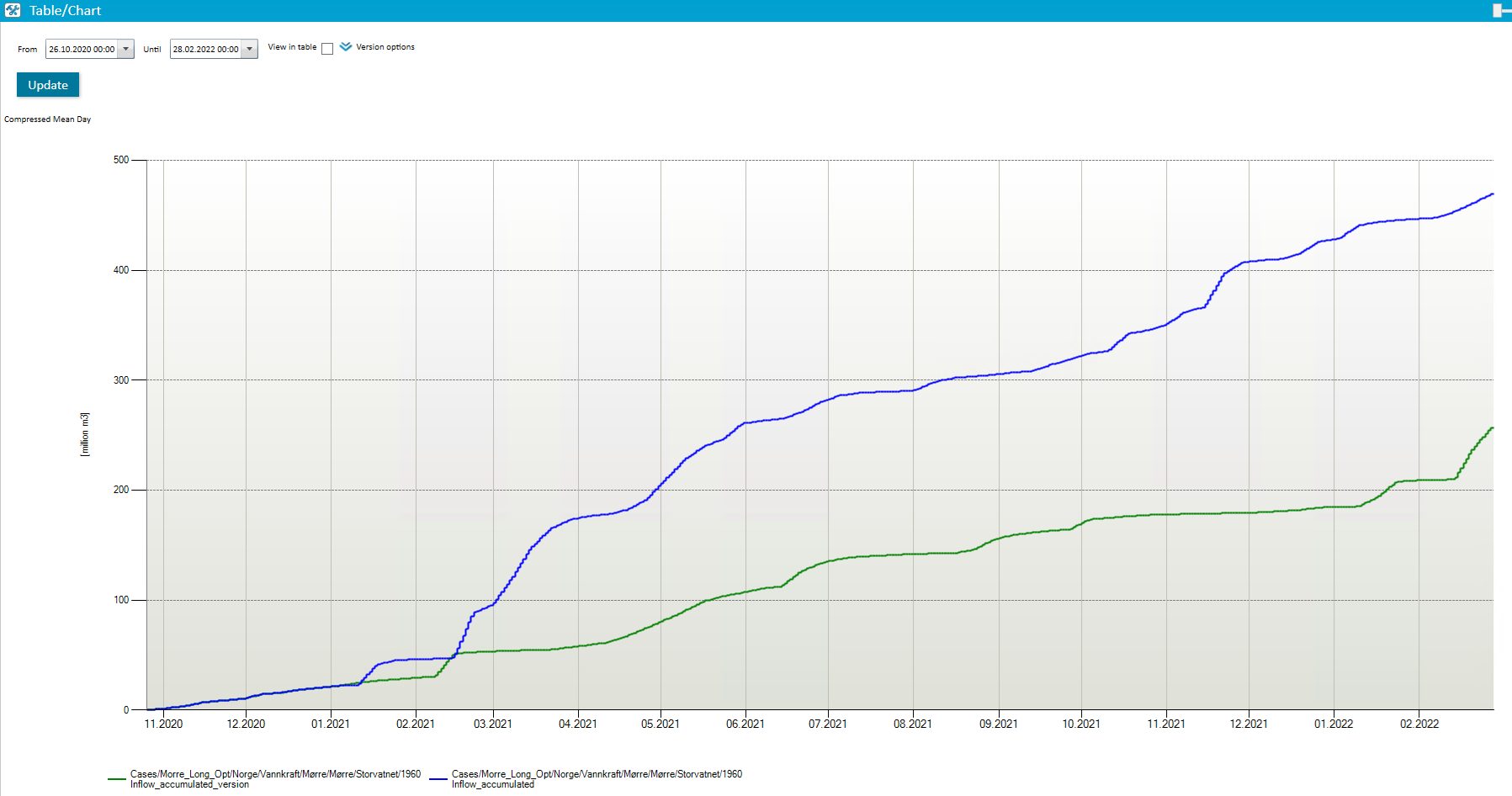

## = InflowAccumulated

The following message in written in Event Log:

12:23:15 Inflow forecast deviates on time series, Model/MeshTEK/Cases.has_OptimisationCases/Morre_Long_Opt.has_cAreas/Norge.has_cHydroProduction/Vannkraft.has_cWaterCourses/Mørre.has_cProdriskAreas/Mørre.has_cProdriskModules/Storvatnet.has_cProdriskScenarios/1960.Inflow_accumulated/Inflow_accumulated, period start 10/25/2020 11:00:00 PM UTC, period end 2/27/2022 11:00:00 PM UTC
