BOOL
About the function
This function converts expressions to purely logical values, i.e. 1 for true
and 0 for false.
In general, all the values in the input are converted to true (even zeroes), and only NaN is converted to false. However, the BOOL(t,d,s) variant allows to specify a numeric value which will also be converted to false if present in the input; this is normally set to 0.
If the input is a time series, the output is a time series with the same resolution as the input time series.
Syntax
- BOOL(t)
- BOOL(d)
- BOOL(t,d[,s])
| # | Type | Description |
|---|---|---|
| 1 | t or d | For BOOL(t), t is a time series. For BOOL(d), d is either a numerical value or NaN. |
| 2 | d | For BOOL(t,d,s), d is a number which will be converted to false if present in t. |
| 3 | s | If present in BOOL(t,d,s), it must be set to "COMPRESS". If the input is a break point time series, this causes consecutive equal values in the output to be removed. |
Examples
Example 1:
@BOOL(d)
@BOOL(NaN) Returns 0.
@BOOL(0) Returns 1.
Only NaN is converted to false.
Example 2: @BOOL(t)
Temperature_hour_VV = @BOOL(@t('Temperature_hour_raw'))

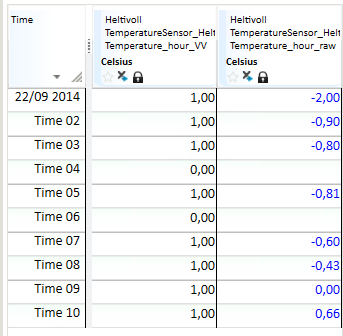

All values are set to true (1) except from NaN, which is false (0), e.g.
Example 3: @BOOL(t,d)
Temperature_hour_VV = @BOOL(@t('Temperature_hour_raw'),0)

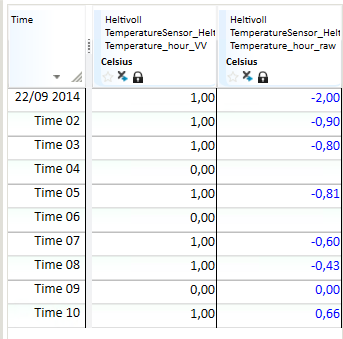

Returns a time series with values:
- 1 when the value in the input series exist and is different from 0.
- 0 when the value in the input series is 0 or missing (NaN).
For example:
Example 4: @BOOL(t,d,s)

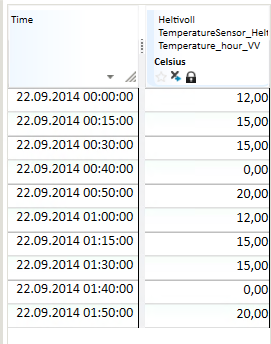

If we have the following input time series:
TsBrp = @TIME_MASK('HOUR',{'HOUR','HOUR+15x','HOUR+30x','HOUR+40x','HOUR+50x'},{12,15,15,0,20},'VARINT')

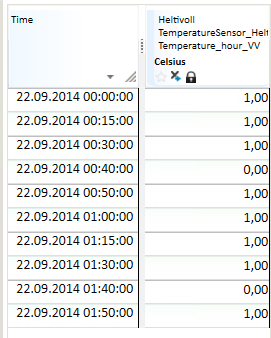

Using the following expression, we can convert the input to the time series below:
Temperature_hour_VV = @BOOL(TsBrp,0,'COMPRESS')
