ACCUMULATE

Accumulates values for some periods for a time series. When entering a new sub period, the accumulation buffer is reset.

Syntax

  • ACCUMULATE(d,s,t[,d,d])
  • ACCUMULATE(t,[s],s)
  • ACCUMULATE(t,s,d)

Description - syntax 1

# Type Description
1 d Initial value
2 s Start time specification. May be a macro definition or a fully specified time point on the
YYYYMMDDhhmmssxxx format.
A calendar name may be used as prefix on this specification.
Default is current standard time (utc+1 in Norwegian setup).
3 t Input data series (fixed interval).
4 d Multiplication factor A. If omitted, value is 1.0.
5 d Offset factor B. If omitted, value is 0.

Description - syntax 2

# Type Description
1 t Input time series (fixed interval).
2 s Optional. Accumulation from start or end of the interval given in the next argument.
’>’ means from the start of the interval and forward.
3 s Accumulation interval. Eg. ‘DAY’, ‘WEEK’, ‘MONTH, ‘YEAR’.
You can set accumulation period to HYDYEAR, i.e. from 1. September
until next 1. September (standard calendar).
You can also use a prefix to overrule the standard time (utc+1 in Norwegian setup).
Eg. ‘UTCWEEK’.

Description - syntax 3

Type Description
t Input data series (fixed interval).
s Accumulation from start or end of the interval given in the next argument.
’>’ means from the start of the interval and forward. ’<’ means from the end of
the interval and backwards.
d Accumulation period given as number of points.

Example 1

Accumulation syntax 1 with five arguments

@ACCUMULATE(0.0, 'UTC20140101', @t('TsAccInput'), 10.0, 0.0)

The example starts accumulation at 1. January (UTC calendar) with initial value 0.0 and value at next time point t is

0.0 + 10.0 * TsAccInput[t] + 0.0

or

Result[t] = initialValue + factor A * TsAccInput[t] + factor B

for the first value and

Result[t] = Result[t-1] + factor A * TsAccInput[t] + factor B

for the next values.

Example 2

Accumulation syntax 1 with three arguments (uses default values for factor A and B (argument four and five))

@ACCUMULATE(0.0, 'YEAR+10d', @t('TsAccInput'))

The example starts accumulation 10th of January (UTC calendar) with initial value 0.0. No multiplication or offset factors are used.

Example 3

Accumulation syntax 2

## = @ACCUMULATE(@t('Precipitation_hour_operative'),'>', 'HYDYEAR')

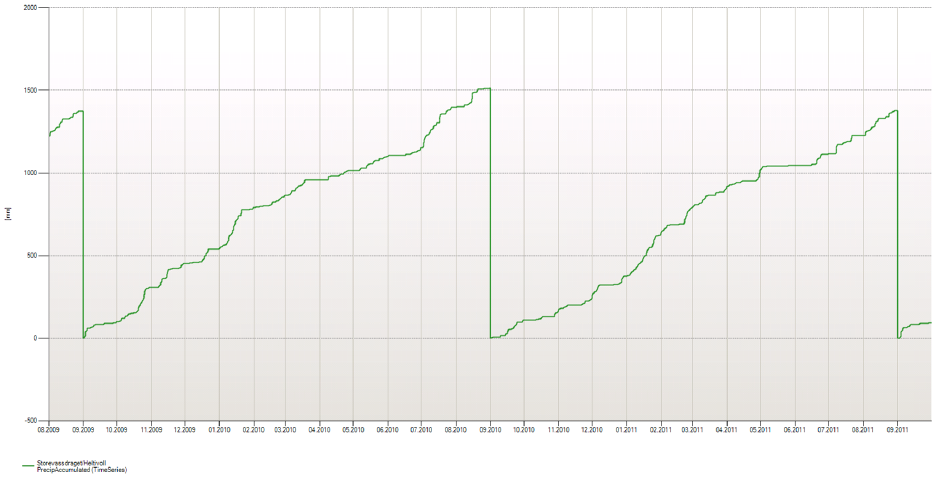

Accumulates the precipitation for each hydrological year.

Example 4

Accumulation syntax 2 with second argument omitted.

## = @ACCUMULATE(@t('Precipitation_hour_operative'),'WEEK')

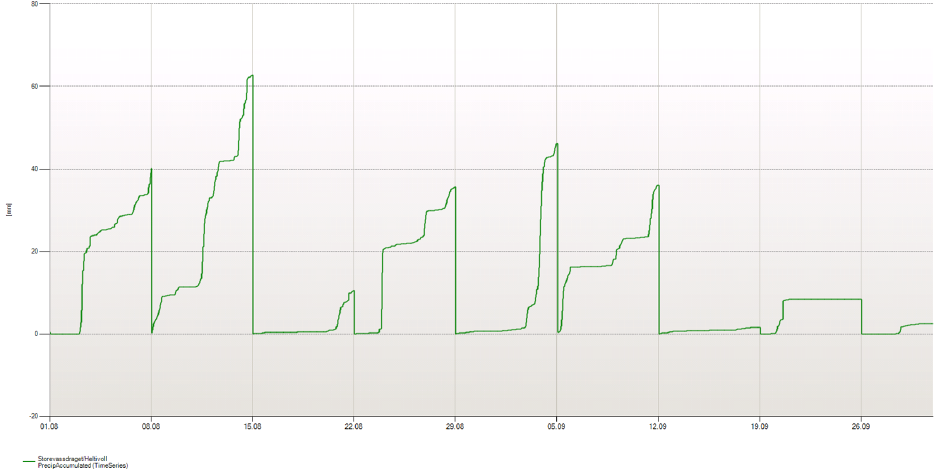

Accumulates the precipitation for each week.

Example 5

Accumulation of bucket precipitation using explicit extended periods

The following example is a general expression for a year's accumulation of precipitation combined with the Time function and extended period functions:

 #
 1  tstart = @Time('YEAR',@Time('SOP'))
 2  viewEndTime = @Time('EOP')
 3  @PushExtPeriod('x', tstart - @TimeSpan('HOUR'), viewEndTime)
 4  Precip = @t('PrecipBucket') * 1.0
 5  @PopExtPeriod('x')
 6
 7  @PushExtPeriod('y', tstart, @Time('EOP'))
 8  Delta = @DELTA(Precip)
 9  DeltaClipped = Delta >= -2 ? Delta : 0
10  @PopExtPeriod('y')
11  ## = @ACCUMULATE(DeltaClipped, '>','YEAR')

Some comments to the expressions above (ref. line numbers #)

  • #1 Finds the start time for the chart presentation. This example uses the YEAR macro (the start of the year), combined with a reference time indicating the report start. If the reference time is not included, the report displays the current year. See also description of the Time function.
  • #2 The end time for the report.
  • #3 Extend relevant calculation period with one hour before the relevant start year. This example shows a linear time arithmetic by using tstart with the length of an hour in the internal time format. This gives necessary data to the DELTA function in the next block.
  • #4 This example gives only a dummy calculation (multiplied with 1), but in reality you would calculate with MIX, validate and correct functions.
  • #9 Removes large negative contributions on the required period.

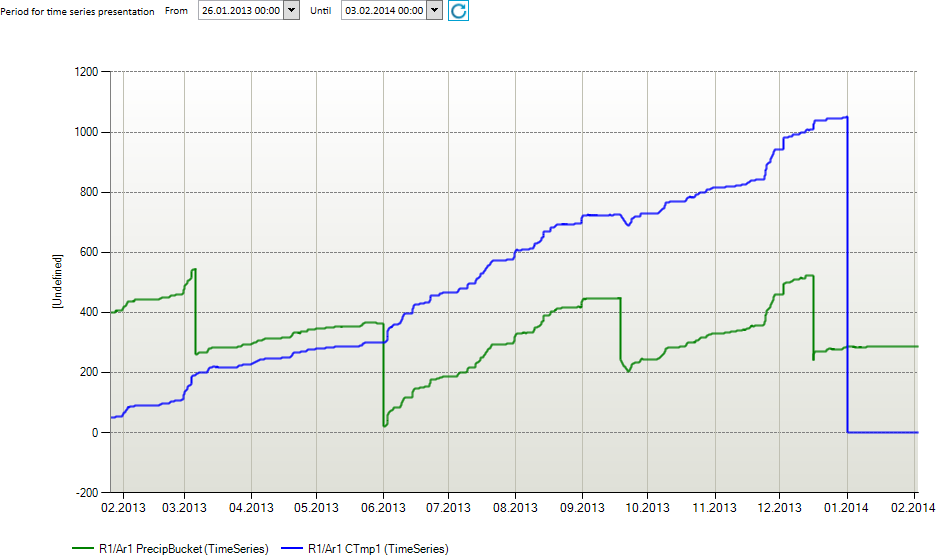

In the following example from Nimbus, the function has accumulated the precipitation from the turn of the year. The start value (tstart), >0, is displayed in the blue curve:

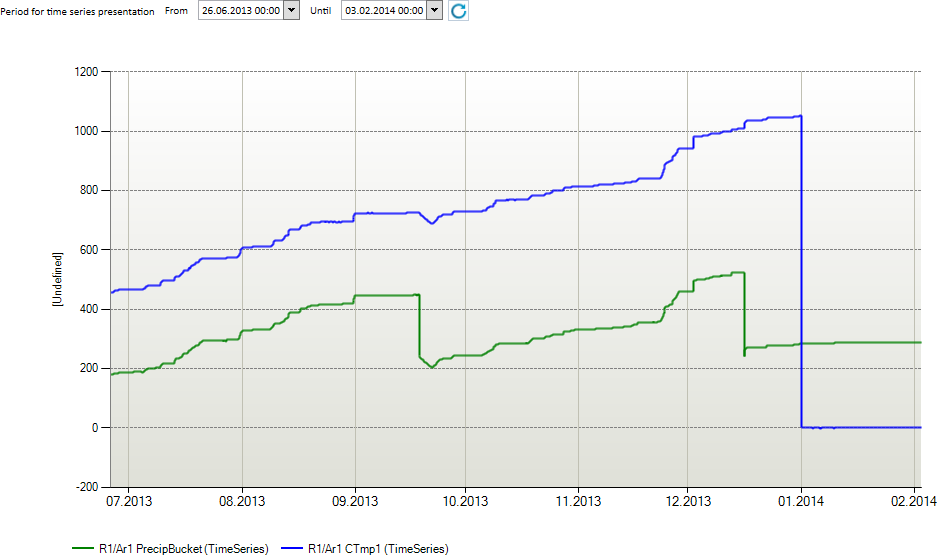

In the following example from Nimbus, the presentation starts later in the year than in the previous example. The start value (tsstar) is displayed in the blue chart:
